AHM36A-S3CC014x12 SICK ⍾ 1065999 ⍾ AHM36AS3CC014X12

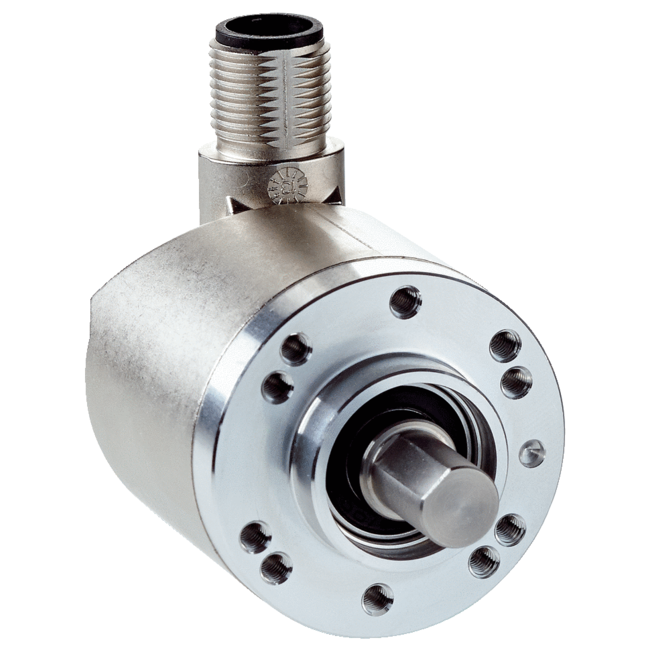

The AHS/AHM36 series absolute encoder, model AHM36A-S3CC014x12, offers both singleturn and multiturn functionality. It features a resolution of 14 bits for singleturn and 12 bits for multiturn, totaling 16,384 x 4,096 increments. The encoder utilizes a solid shaft face mount flange design with dimensions of 6 mm x 12 mm. Communication is achieved via CANopen with programmable capabilities, connected through an M12, 5-pin universal male connector. Programming is supported through a PLC-Engineering-Tool and a handheld programming tool.
- Type
- Absolute encoders
- Customs tariff number
- 90318020
- Expected origin
- DE
- Weight
- 0.18 kg
