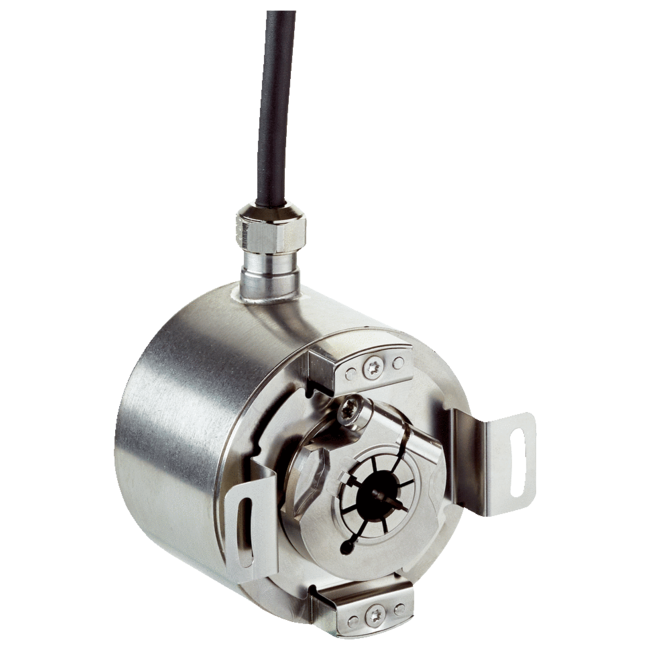

AFM60I-BDLM262144 SICK1098780AFM60IBDLM262144

Performance: Max. resolution (number of steps per revolution x number of revolutions): 18 bit x 12 bit (262,144 x 4,096); Error limits G: 0.03° 1); Repeatability standard deviation σr: 0.002° 2); Interfaces: Communication interface: SSI; Communication Interface detail: SSI + incrementalHTL; Initialization time: 50 ms 1); Position forming time: < 1 µs; SSICode typeGrayCode sequence parameter adjustableCW/CCW (V/R̅)Clock frequency2 MHz 2)Set (electronic adjustment)H-active (L = 0 - 3 V, H = 4,0 - Us V)CW/CCW (counting sequence when turning)L-active (L = 0 - 1,5 V, H = 2,0 - Us V): SSI; IncrementalPulses per revolution1/4 of number of SSI steps per revolutionOutput frequency≤ 820 kHzLoad current≤ 30 mA: Incremental; Electrical data: Connection type: Cable, 12-wire, radial, 5 m; Supply voltage: 4.5 ... 32 V DC; : Cable, 12-wire; Power consumption: ≤ 0.7 W (without load); Reverse polarity protection: ✔; MTTFd: mean time to dangerous failure: 250 years 1); Mechanical data: Mechanical design: Blind hollow shaft; Shaft diameter: 10 mm; Weight: 0.5 kg 1); Shaft material: Stainless steel V2A; Flange material: Stainless steel V2A; Housing material: Stainless steel V2A; Start up torque: 1 Ncm; Operating torque: 0.5 Ncm; Permissible shaft movement, axial static/dynamic: ± 0.5 mm, ± 0.1 mm; Permissible shaft movement, radial static/dynamic: ± 0.3 mm, ± 0.1 mm; Permissible Load capacity of shaft: 80 N / radial40 N / axial; Moment of inertia of the rotor: 40 gcm²; Bearing lifetime: 3.0 x 10^9 revolutions; Angular acceleration: ≤ 500,000 rad/s²; Operating speed: ≤ 6,000 min⁻¹ 2); Ambient data: EMC: According to EN 61000-6-2 and EN 61000-6-3 1); Enclosure rating: IP67, shaft sideIP67, housing side, male connector connection 2)IP67, housing side, cable connection; Permissible relative humidity: 90 % (condensation of the optical scanning not permitted); Operating temperature range: –40 °C ... +100 °C 3)–30 °C ... +100 °C 4); Storage temperature range: –40 °C ... +100 °C, without package; Resistance to shocks: 100 g, 6 ms (according to EN 60068-2-27); Resistance to vibration: 10 g, 10 Hz ... 2,000 Hz (according to EN 60068-2-6); Classifications: ECl@ss 5.0: 27270502; ECl@ss 5.1.4: 27270502; ECl@ss 6.0: 27270590; ECl@ss 6.2: 27270590; ECl@ss 7.0: 27270502; ECl@ss 8.0: 27270502; ECl@ss 8.1: 27270502; ECl@ss 9.0: 27270502; ECl@ss 10.0: 27270502; ECl@ss 11.0: 27270502; ETIM 5.0: EC001486; ETIM 6.0: EC001486; ETIM 7.0: EC001486; UNSPSC 16.0901: 41112113
