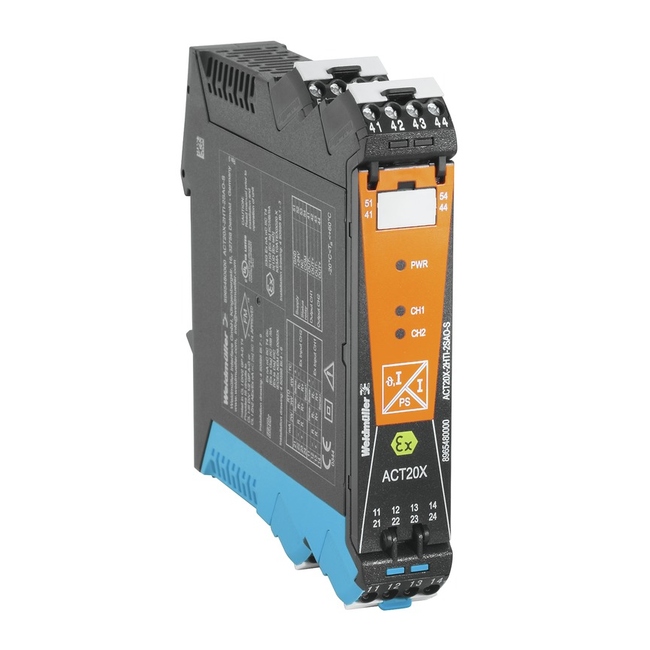

ACT20X-HAI-SAO-S Weidmüller ⍾ 8965430000 ⍾ ACT20XHAISAOS

Ex supply isolator for standard DC current signals, 2-channel, HART transparent2-channel supply isolator in 22.5 mm width with external power supply,for transmitting and isolating 4...20 mA standard signals from Ex Zones 0,1,2 to the safezones. The component has an active and passive input. External sensors can be supplied with >15 V DC. The 4...20 mA output circuit can be operated either passively or actively. Status and error messages are available via a relay contact (NO).The component can be configured using standard FDT/DTM software.

Type

ACT20X intrinsically safe signal converter

Weight

0.19 kg

Dimensions

113.6 mm x 119.2 mm x 22.5 mm

EAN

4032248785049
