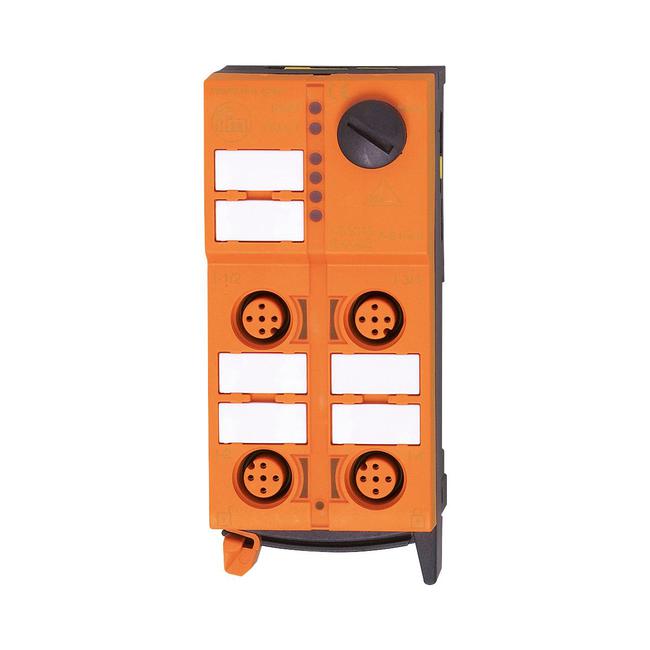

AC5224 ifm ⍾ ClassicL 2DO-Y 2DI-Y IP67

AS-Interface ClassicLine module with quick mounting technology; Max. current consumption from AS-i [mA] : 250; Max. current load total [A] : 0.2; Integrated watchdog : yes; Number of digital inputs : 2; Input circuit of digital inputs : PNP; Sensor supply of the inputs : AS-i; Voltage supply [V] : 18...30; Max. total current rating of inputs [mA] : 200; (current load for all inputs and outputs: 200 mA); Input current High [mA] : 6...10; Input current Low [mA] : 0...2; Min. switching level high signal [V] : 11; Digital inputs protected against short circuits : yes; Number of digital outputs : 2; Circuit : PNP; Voltage range DC [V] : 18...30; Max. current load per output [mA] : 200; (current load for all inputs and outputs: 200 mA); Short-circuit proof : yes; Electrically separated : no; Actuator supply outputs : AS-i; Ambient temperature [°C] : -25...70; Materials : PA; piercing contacts: CuSn6 nickel-plated and tin-plated; quick mounting technology for AS-i flat cable: ; three orientations possible; Items supplied : lower part; Accessories (optional) : Protective cap: M12, E73004

Type

Complete product line

Connection

Connector: M12

No. of inputs/outputs

Number of digital inputs: 2; Number of digital outputs: 2

Current consumption

< 750 mA

Voltage supply

18...30 V

Display

operation: LED, green | errors: LED, red | function: LED, yellow

Degree of protection

IP 67

Weight

182.5 g

Dimensions

45 x 82.5 x 33 mm
