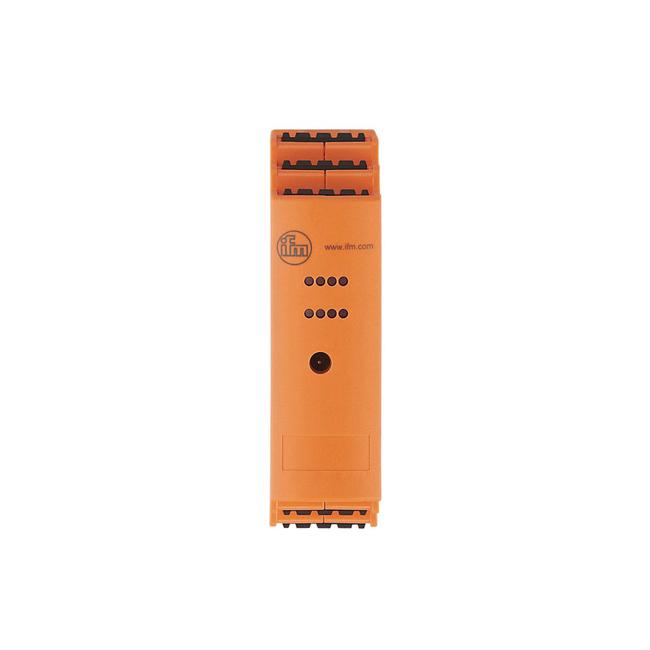

AC3222 ifm ⍾ SmartL25 4 AI (Pt100) C IP20

Active AS-i module; Max. current consumption from AS-i [mA] : 80; Reverse polarity protection : yes; Number of Pt100 inputs : 4; Sensor supply of the inputs : AS-i; Analogue inputs protected against short circuits : yes; Resolution of analogue input : 16 bit / 0.1 °C; Measuring range [°C] : -200...850; Accuracy : ± 0.2 °C (-200 °C)...± 2 °C (800 °C); Ambient temperature [°C] : 0...70; Storage temperature [°C] : -25...85; Max. relative air humidity [%] : 90; (non condensing); Max. height above sea level [m] : 2000; Protection rating terminals : IP 20; Degree of soiling : 2; Type of mounting : mounting on DIN rail; Materials : PC-GF20; Items supplied : COMBICON connectors

Type

ifm

Connection

pin headers: 4 x ; Spacing: 5.0 mm

No. of inputs/outputs

Number of Pt100 inputs: 4

Current consumption

< 200 mA

Voltage supply

18...30; (DC AUX) V

Display

analogue signal: LED, yellow channels AI1...AI4 | operation: LED, green AS-i | errors: LED, red

Degree of protection

IP 20

Weight

194 g

Dimensions

M20 x 1.5 mm
