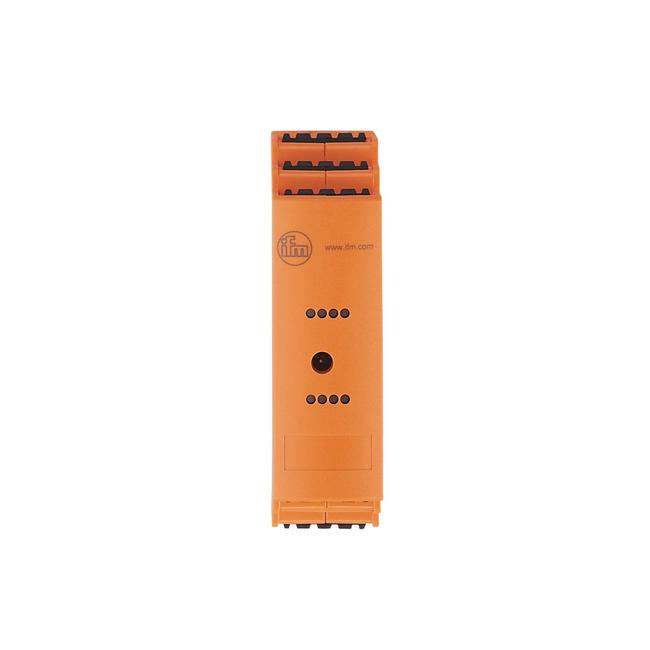

AC3218 ifm ⍾ SmartL25 4 AO (C) C IP20

Active AS-i module; Max. current consumption from AS-i [mA] : 157; Reverse polarity protection : yes; Additional voltage supply [V] : 20...30 DC; (AUX); Additional voltage supply : optional; Max. current consumption from additional supply [mA] : 550; (AUX); Number of analogue outputs : 4; (connection of 2-wire or 4-wire actuators); Analogue current output [mA] : 0...20; Max. load [Ω] : 600; Max. voltage drop across load for nominal current [V] : 10; Overload protection : yes; Resolution of analogue output : 16 (1 bit = 1 µA); Actuator supply outputs : AS-i / AUX; Ambient temperature [°C] : 0...70; Storage temperature [°C] : -25...75; Max. relative air humidity [%] : 90; (non condensing); Max. height above sea level [m] : 2000; Protection rating terminals : IP 20; Degree of soiling : 2; Type of mounting : mounting on DIN rail; Materials : PC-GF20; Items supplied : COMBICON connectors

Type

ifm

Connection

pin headers: 4 x ; Spacing: 5.0 mm

No. of inputs/outputs

Number of analogue outputs: 4

Current consumption

< 200 mA

Voltage supply

18...30; (DC) V

Display

analogue signal: LED, yellow channels AO1...AO4 | diagnosis: LED, yellow | operation: LED, green AS-i, AUX | errors: LED, red

Degree of protection

IP 20

Weight

204 g

Dimensions

M20 x 1.5 mm
