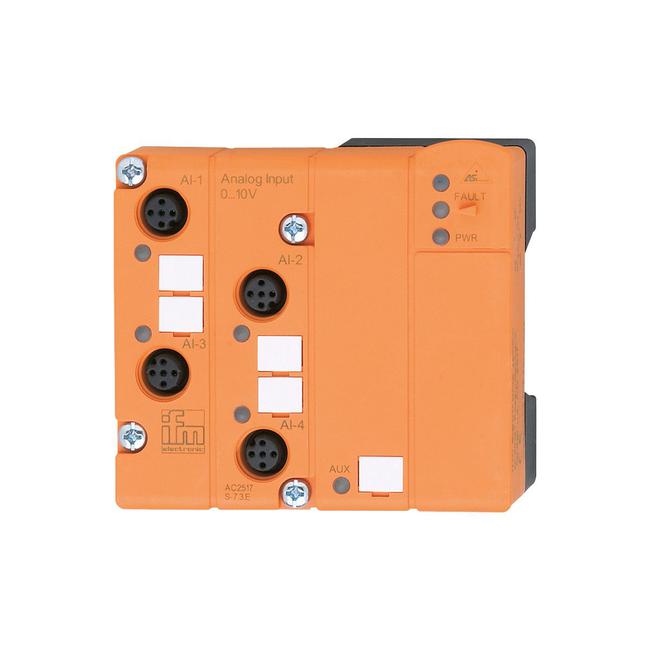

AC2517 ifm ⍾ ClassicLine90 4AI (V) M12 IP67

AS-Interface ClassicLine module; Max. current consumption from AS-i [mA] : 157; Reverse polarity protection : yes; Additional voltage supply [V] : 24...30 DC; (AUX); Additional voltage supply : optional; Max. current consumption from additional supply [mA] : 550; (AUX); Max. total current rating of inputs [mA] : 100; Number of analogue inputs : 4; (connection of 2-wire, 3-wire and 4-wire sensors); Analogue input (voltage) [V] : 0...10; Analogue inputs protected against short circuits : no; Resolution of analogue input : 16 (1 bit = 1 mV); Precision analogue input [%] : 0,5; Ambient temperature [°C] : 0...70; Storage temperature [°C] : -20...85; Max. relative air humidity [%] : 90; (non condensing); Max. height above sea level [m] : 2000; Type of mounting : AS-i interface to FC/FC-E lower parts; Materials : PBT; Tightening torque [Nm] : 0.6...0.8; Connector: M12; Accessories (optional) : Module lower part

Type

Complete product line

Connection

Connector: M12

No. of inputs/outputs

Number of analogue inputs: 4

Current consumption

< 160 mA

Voltage supply

18...30; (DC) V

Display

analogue signal: LED, yellow channels AI1...AI4 | diagnosis: LED, yellow | operation: LED, green AS-i, AUX | errors: LED, red

Degree of protection

IP 67

Weight

221.5 g

Dimensions

134.5 x 30 x 23.5 mm
