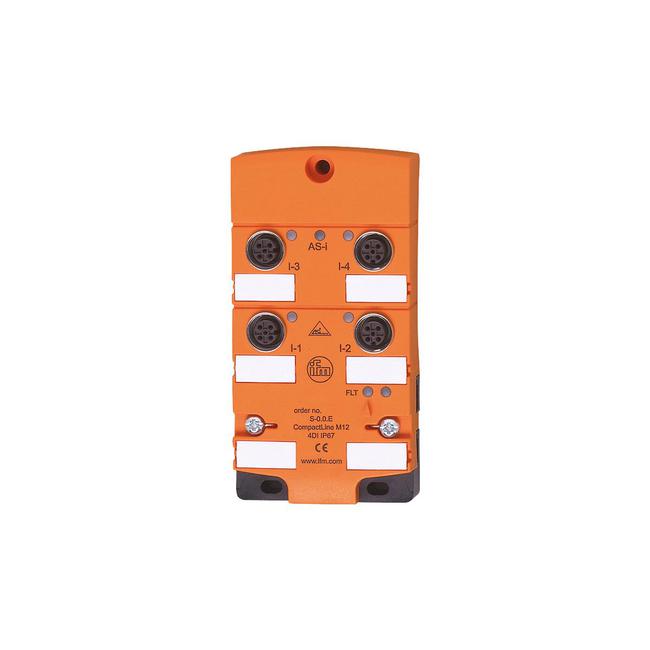

AC2485 ifm ⍾ CompactM12 2 DO 2 DI T V4A A/B

AS-Interface CompactLine module; Max. current consumption from AS-i [mA] : 220; Max. current load total [A] : 4; Additional voltage supply [V] : 10...30 DC; (AUX); Max. current consumption from additional supply [mA] : 4000; (AUX); Integrated watchdog : yes; Number of digital inputs : 2; Input circuit of digital inputs : PNP; (type 2 according to IEC 61131-2); Sensor supply of the inputs : AS-i; Voltage supply [V] : 20...30; (DC); Max. total current rating of inputs [mA] : 180; Input current limitation [mA] : 15; Input current High [mA] : 6...10; Input current Low [mA] : 0...2; Min. switching level high signal [V] : 11; Digital inputs protected against short circuits : yes; Number of digital outputs : 2; Circuit : PNP; Voltage range DC [V] : 10...30; (AUX); Max. current load per output [mA] : 2000; (utilisation category DC-13 (control of electromagnets): 20 W (IEC 60947-5-1)); Max. current load outputs total [A] : 4; Short-circuit proof : yes; Electrically separated : yes; Actuator supply outputs : AUX; Ambient temperature [°C] : -25...80; Storage temperature [°C] : -25...80; Max. relative air humidity [%] : 90; (non condensing); Max. height above sea level [m] : 2000; Type of mounting : AS-i flat cables directly connectable; Materials : PA; socket: stainless steel (1.4404 / 316L); threaded inserts in the lower part: stainless steel (1.4404 / 316L); O-ring: EPDM; screws: stainless steel (1.4578 / 316Cu); piercing contacts: CuSn6 nickel-plated and tin-plated; Sealing material : EPDM; Module connection : Flachkabel; Accessories (optional) : Stainless steel sleeve, for installation in case of high mechanical stress , E70402; Connector: M12; Sealing: EPDM

Connection

Connector: M12

No. of inputs/outputs

Number of digital inputs: 2; Number of digital outputs: 2

Current consumption

< 160 mA

Voltage supply

20...30; (DC) V

Display

switching status: LED, yellow I1...I2, O1...O2 | operation: LED, green AS-i, AUX | errors: LED, red

Degree of protection

IP 67; (when flat cables are used E7400x / E7401x)

Weight

288.5 g

Dimensions

118.2 x 60 x 27 mm
