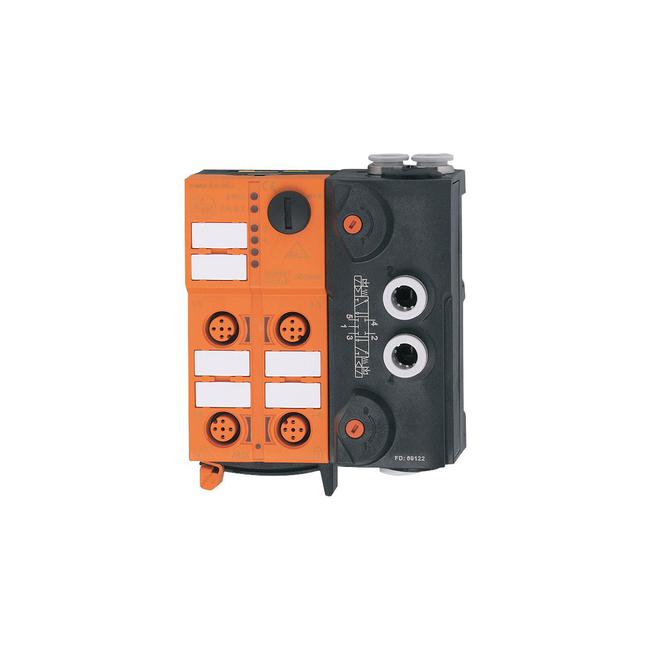

AC246A ifm ⍾ AirBox 5/2 2DI-Y II 3D

AS-Interface AirBox; Max. current consumption from AS-i [mA] : 300; Integrated watchdog : yes; Number of digital inputs : 2; Input circuit of digital inputs : PNP; Sensor supply of the inputs : AS-i; Voltage supply [V] : 20...30; (via flat cable); Max. total current rating of inputs [mA] : 200; Input current High [mA] : 6...10; Input current Low [mA] : 0...2; Min. switching level high signal [V] : 11; Digital inputs protected against short circuits : yes; Electrical design : AS-i; Number of pneumatic outputs : 1; Ambient temperature [°C] : -10...50; Type of mounting : quick mounting; Materials : PA; POM; piercing contacts: CuSn6 nickel-plated and tin-plated; Pneumatic system : 1 x 5/2-way slide valve (free from overlapping); Operating pressure range [bar] : 3...8; Operating pressure range [MPa] : 0.3...0.8; Air flow at 6/5 bar [l/min] : 500; Permissible compressed air : non-lubricated compressed air class 6-3-1; lubricated compressed air class 6-3-4; Manual override : pressing/releasing or pressing/turning/locking; Tube fittings : 8 mm; Exhaust : exhaust can be discharged through tube connection; Items supplied : lower part; Accessories (optional) : Mounting plate:, E74999 | Module lower part:, E75000 | Protective cap: M12, E73004 | sealing plugs:, E75231 | Impact protection housing:, E7000A | silencer:, E75232 | Push-in L-fitting:, E75228 | Push-in T-fitting:, E75227

Connection
quick mounting technology for AS-i flat cable: ; three orientations possible
No. of inputs/outputs
Number of digital inputs: 2; Number of pneumatic outputs: 1
Current consumption
< 160 mA
Voltage supply
20...30; (via flat cable) V
Display
operation: LED, green | errors: LED, red | function: LED, yellow
Degree of protection
IP 50
Weight
403 g
Dimensions
152 x 60 x 27 mm
