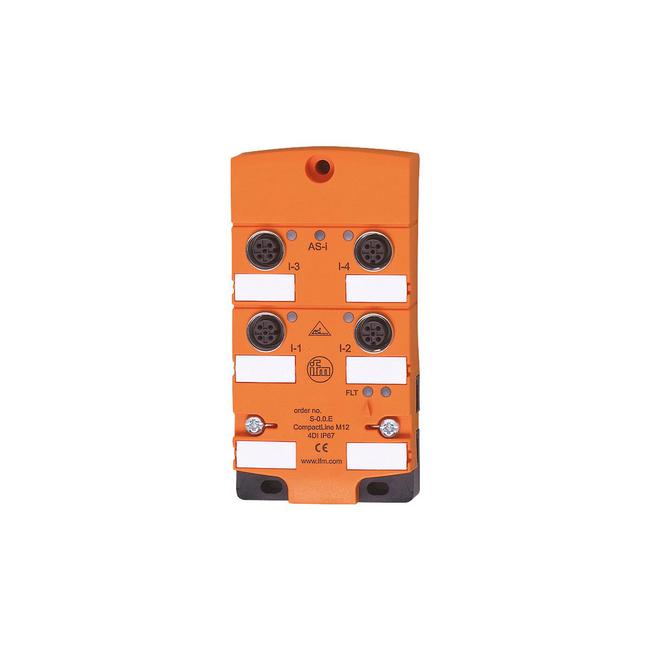

AC2451 ifm ⍾ CompactModule 4DI M12 V4A

AS-Interface CompactLine module; Max. current consumption from AS-i [mA] : 250; Number of digital inputs : 4; Input circuit of digital inputs : PNP; (type 2 according to IEC 61131-2); Sensor supply of the inputs : AS-i; Voltage supply [V] : 20...30; (DC); Max. total current rating of inputs [mA] : 200; Input current limitation [mA] : 15; Input current High [mA] : 6...10; Input current Low [mA] : 0...2; Min. switching level high signal [V] : 11; Digital inputs protected against short circuits : yes; Ambient temperature [°C] : -25...80; Storage temperature [°C] : -25...80; Max. relative air humidity [%] : 90; (non condensing); Max. height above sea level [m] : 2000; Type of mounting : AS-i flat cables directly connectable; Materials : PA; socket: stainless steel (1.4404 / 316L); threaded inserts in the lower part: stainless steel (1.4404 / 316L); screws: stainless steel (1.4578 / 316Cu); piercing contacts: CuSn6 nickel-plated and tin-plated; O-ring EPDM; Connector: M12; Accessories (optional) : Stainless steel sleeve, for installation in case of high mechanical stress , E70402

Type

Compact field modules with screw mounting CompactLine

Connection

Connector: 1 x M12; Moulded body: stainless steel

No. of inputs/outputs

Number of digital inputs: 4

Current consumption

< 160 mA

Voltage supply

20...30; (DC) V

Display

switching status: LED, yellow I1...I4 | operation: LED, green AS-i | errors: LED, red

Degree of protection

IP 67; (when flat cables are used E7400x / E7401x)

Weight

292 g

Dimensions

152 x 60 x 27 mm
