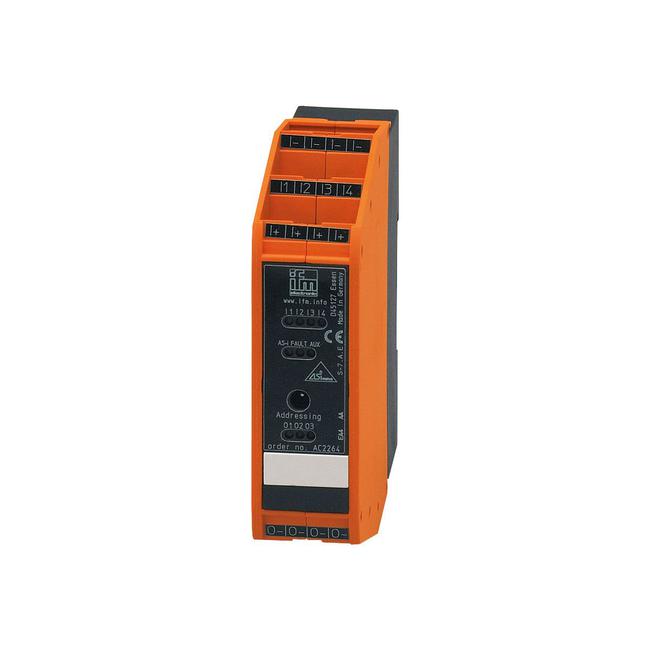

AC2264 ifm ⍾ SmartLine25 4DI 3DO T C

AS-Interface control cabinet module; Max. current consumption from AS-i [mA] : 250; Additional voltage supply [V] : 20...30 DC; Max. current consumption from additional supply [mA] : 3000; (AUX); Integrated watchdog : yes; Number of digital inputs : 4; Input circuit of digital inputs : PNP; (type 2 according to IEC 61131-2); Sensor supply of the inputs : AS-i; Voltage supply [V] : 18...30; (DC); Max. total current rating of inputs [mA] : 200; Input current High [mA] : 6...10; Input current Low [mA] : 0...2; Min. switching level high signal [V] : 11; Digital inputs protected against short circuits : yes; Number of digital outputs : 3; Circuit : PNP; Voltage range DC [V] : 20...30; (AUX); Max. current load per output [mA] : 1000; (utilisation category DC-12: 700 mA; utilisation category DC-13 (control of electromagnets): 20 W (IEC 60947-5-1)); Max. current load outputs total [A] : 3; Short-circuit proof : yes; Electrically separated : yes; Actuator supply outputs : AUX; Ambient temperature [°C] : -25...70; Note on ambient temperature : the derating of the current load indicated in the operating instructions is to be taken into account at the following ambient temperature: > 60 °C; Max. relative air humidity [%] : 90; (non condensing); Max. height above sea level [m] : 2000; Degree of soiling : 2; Type of mounting : mounting on DIN rail; Materials : PC-GF20; Accessories (optional) : connectors

Type

Installation in control cabinets

Connection

pin header:

No. of inputs/outputs

Number of digital inputs: 4; Number of digital outputs: 3

Current consumption

12...57; (external supply) mA

Voltage supply

18...30; (DC) V

Display

switching status: LED, yellow I1...I4, O1....O3 | operation: LED, green AS-i, AUX | errors: LED, red

Degree of protection

IP 20

Weight

146 g

Dimensions

45 x 80 x 46 mm
