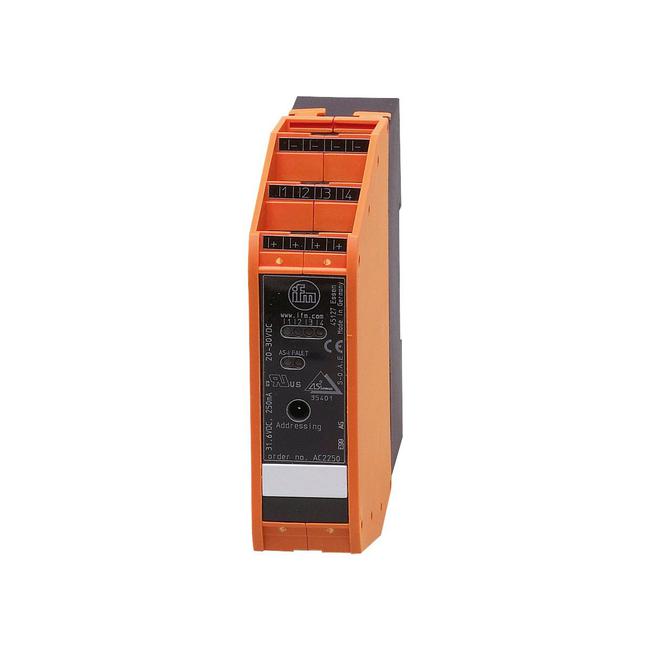

AC2218 ifm ⍾ SmartLine25 4AO (C) C IP20

AS-Interface control cabinet module; Max. current consumption from AS-i [mA] : 57; (with external supply: 25 mA); Reverse polarity protection : yes; Max. current load total [A] : 0.5; (with external supply; with external supply: 100 mA); Additional voltage supply [V] : 24 DC; (to PELV); Additional voltage supply : optional; Number of analogue outputs : 4; (Anschluss von 2-Draht-Aktuatoren oder 4-Draht-Aktuatoren mit separater 24 V-Versorgung); Analogue current output [mA] : 0...20; Max. load [Ω] : 600; Overload protection : yes; Resolution of analogue output : 16 (1 bit = 1 µA); Actuator supply outputs : AS-i / AUX; Ambient temperature [°C] : 0...70; Storage temperature [°C] : -20...85; Type of mounting : mounting on DIN rail; Materials : PA 6.6

Type

Complete product line

Connection

COMBICON:

No. of inputs/outputs

Number of analogue outputs: 4

Current consumption

12...57; (external supply) mA

Voltage supply

20...30 V

Display

operation: LED, green Voltage AS-i / 24 V AUX | errors: LED, red | function: LED, yellow channels 1...4

Degree of protection

IP 20

Weight

175 g

Dimensions

45 x 80 x 46 mm
