ifm AC2041

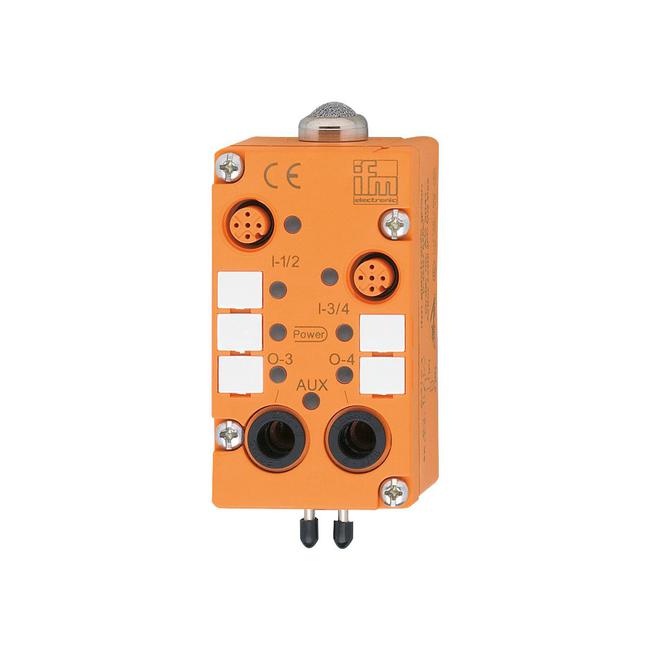

AC2041 ifm ⍾ AirBox 2x2DI 2PO M12

AS-Interface AirBox; Max. current consumption from AS-i [mA] : 170; Additional voltage supply [V] : 18...30 DC; (to PELV); Integrated watchdog : yes; Number of digital inputs : 4; (2 x 2); Input circuit of digital inputs : PNP; Sensor supply of the inputs : AS-i; Voltage supply [V] : 20...30; Max. total current rating of inputs [mA] : 100; Input current High [mA] : > 3; Input current Low [mA] : < 1.5; Min. switching level high signal [V] : 10; Digital inputs protected against short circuits : yes; Number of pneumatic outputs : 2; Actuator supply outputs : AUX; Ambient temperature [°C] : 0...55; Note on ambient temperature : with special compressed air treatment: < 0 °C; Type of mounting : screw mounting; Materials : PBT; Pneumatic system : 2 x 3/2-way seat valves; Operating pressure range [bar] : 2...8; Operating pressure range [MPa] : 0.2...0.8; Note on working pressure range : incl. possible pressure peaks; Air flow at 6/5 bar [l/min] : 350; Air flow at 6/0 bar [l/min] : 550; Permissible compressed air : filtered (5 µm); lubricated (ISO-VG10) or not lubricated; Tube fittings : Legris LF 3000/8; Exhaust : integrated exhaust; contact pins to module lower part, FK-E / PG: Connector: M12

Connection
terminals: ...2.5 mm²
No. of inputs/outputs
Number of digital inputs: 4; Number of pneumatic outputs: 2
Current consumption
< 500; (AUX / AS-i 1) mA
Voltage supply
20...30 V
Display
operation: LED, green | function: LED, yellow
Degree of protection
IP 65
Weight
260 g
Dimensions
45 x 80 x 46 mm
