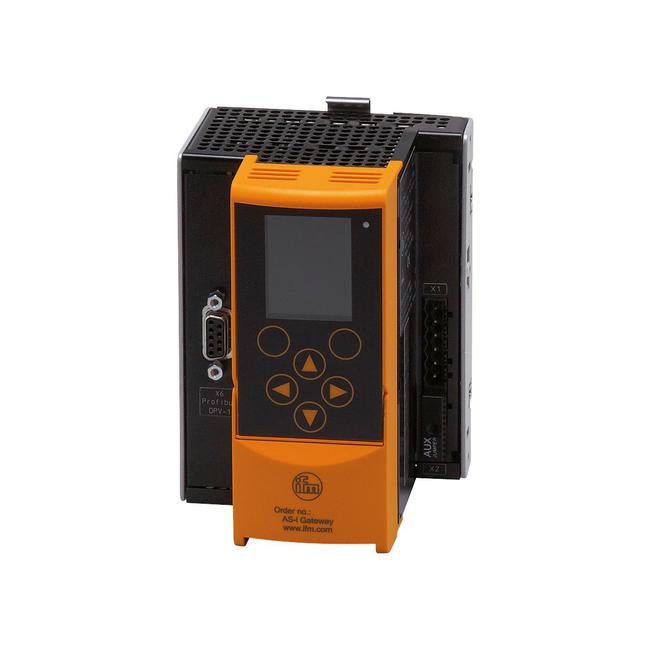

AC1412 ifm ⍾ AS-i Gateway 2Master PB

AS-Interface PROFIBUS DP gateway; Max. current consumption from AS-i [mA] : 500; (with external supply: 10 mA; AS-i 2: 10 mA); Number of AS-i masters : 2; Electrical separation : yes; Voltage range DC [V] : to PELV; Communication interface : Ethernet; PROFIBUS; Transmission rate : 10 MBaud; 100 MBaud; Connector type : RJ45; Protocol : Modbus TCP; Usage type : programming; Protocol : TCP/IP; Protocol : UDP/IP; Transmission standard : EN 50170; Transmission rate : 12 MBaud; Protocol : Profibus DP; Usage type : data transmission; Version : DPV0; DPV1; Ambient temperature [°C] : 0...60; Storage temperature [°C] : -20...70; Housing : housing for DIN rail mounting; Materials : aluminium powder-coated; steel sheet galvanised; PC; Items supplied : terminals; Accessories (optional) : licence: "CODESYS V3", E71400

Type

AS-Interface masters

Connection

terminals: ...2.5 mm²

No. of inputs/outputs

Number of digital inputs: 2

Current consumption

< 500; (AUX / AS-i 1) mA

Voltage supply

20...30 V

Display

function: 1 x LED, red/green | full graphic LCD display

Degree of protection

IP 20

Weight

724.5 g

Dimensions

131 x 107 x 86 mm
