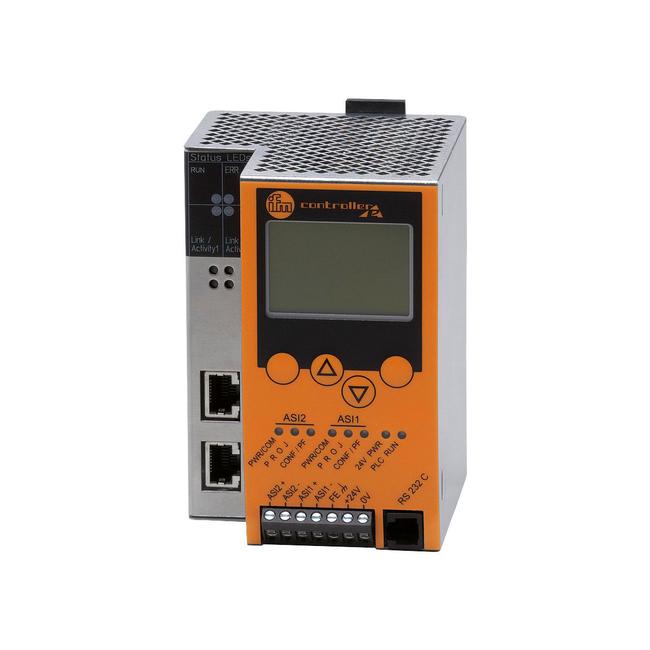

AC1392 ifm ⍾ ControllerE M4 2Mstr ECAT

AS-Interface EtherCAT gateway with PLC; Max. current consumption from AS-i [mA] : 10; Max. power consumption [VA] : 10; Number of AS-i masters : 2; Communication interface : RS232; Ethernet; Protocol : EtherCAT; Usage type : data transmission; Number of R232 interfaces : 1; Transmission rate : 9600...115200 Baud; Connector type : RJ11; Usage type : programming; Note on interfaces : electrically isolated; Ambient temperature [°C] : 0...60; Storage temperature [°C] : -20...70; Housing : housing for DIN rail mounting; Materials : aluminium; steel sheet galvanised

Type

AS-Interface masters

Connection

screw terminals:

No. of inputs/outputs

Number of digital inputs: 2

Current consumption

< 400 mA

Voltage supply

20...30 V

Display

function: 3 x LED, red | 4 x LED, green | 2 x LED, yellow | full graphic LCD display

Degree of protection

IP 20

Weight

568 g

Dimensions

131 x 107 x 86 mm
