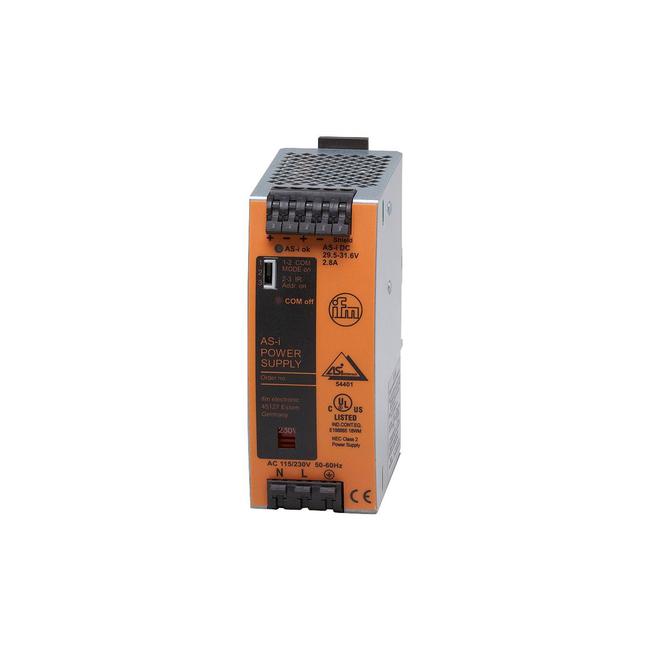

AC1226 ifm ⍾ PowerSupply 230VAC 2,8A

AS-Interface power supply; Nominal voltage AC [V] : 110 / 230; Nominal frequency AC [Hz] : 47...63; Input voltage range AC [V] : 85...132 / 184...264; Overvoltage protection : yes; (< 55 V); Max. power-on delay time [ms] : 100; Output voltage AS-i [V] : 29.5...31.6; (to PELV; NEC Class II); Output power (permanent) [W] : 85; Number of output circuits : 1; Output current AS-i [A] : 2.8; Max. residual ripple [mV] : 50; External input protection : > 6 A; Derating [W/K] : 2 (60...70 °C); Integrated data decoupling : yes; Short-circuit protection : yes; Type of short-circuit protection : electronically protected; Overload protection : yes; Parallel connection of outputs possible : no; Series connection of outputs possible : no; Ambient temperature [°C] : -10...70; Materials : aluminium; steel sheet galvanised

Type

AS-Interface power supplies and monitors

Connection

cage clamps:

No. of inputs/outputs

Number of digital inputs: 2

Current consumption

< 400; (5 V: 300 mA; 3,3 V: 100 mA) mA

Voltage supply

20...30 V

Display

function: LED, green goes off in case of overload U < 28 V | IR addressing: LED, red

Degree of protection

IP 20

Weight

573.5 g

Dimensions

45 x 90 x 100 mm
