7MT4352-0DB38-2JB2-Z Y44 SIEMENS ⍾ 7MT43520DB382JB2ZY44

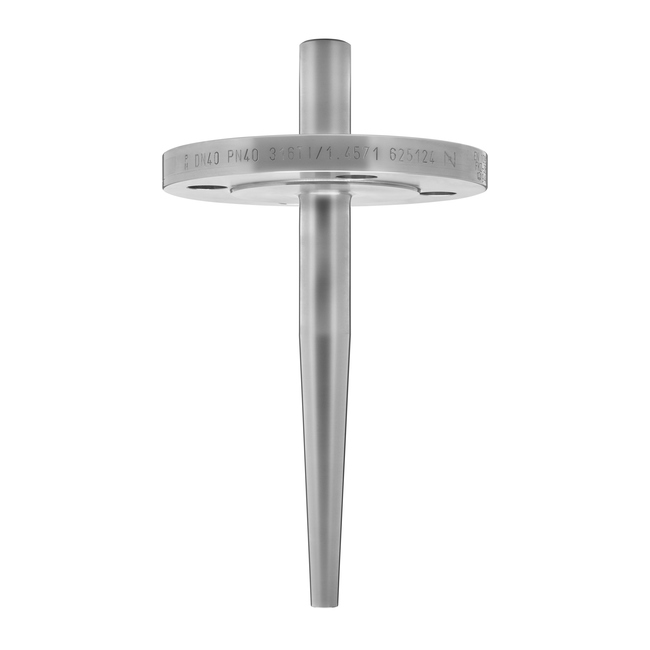

SITRANS TS Thermowell Barstock thermowell according to ASME B40.9 With flange Tapered Type Connection to thermometer E1: Thread 1/2-14 NPT Head diameter /Hex size: 30 mm Head length X1: 25 .. 50 mm: Initial: 45 mm (1..1,99 in: Initial:1,8in) Insertion length U: 381 .. 507 mm:Initial 381 mm ( 15.. 19,99in: Initial: 15in) Thermowell Material: 316L / 1.4404 Root diameter: D = 17 mm (0.67 in) Tip diameter: D2 = 14 mm (0.55 in) Process connection: Flange DN50PN25 - 40 according to DIN EN 1092-1 Sealing-face initial: B1 Process connection material: 316L / 1.4404 Bore diam D3: D3= 6,6 mm (0,260 in) Customizing: Length options U: Specify special inst. length (in spec. area)

Type

Temperature sensors
