7ML5728-1AA21-4AB0 SIEMENS ⍾ 7ML57281AA214AB0

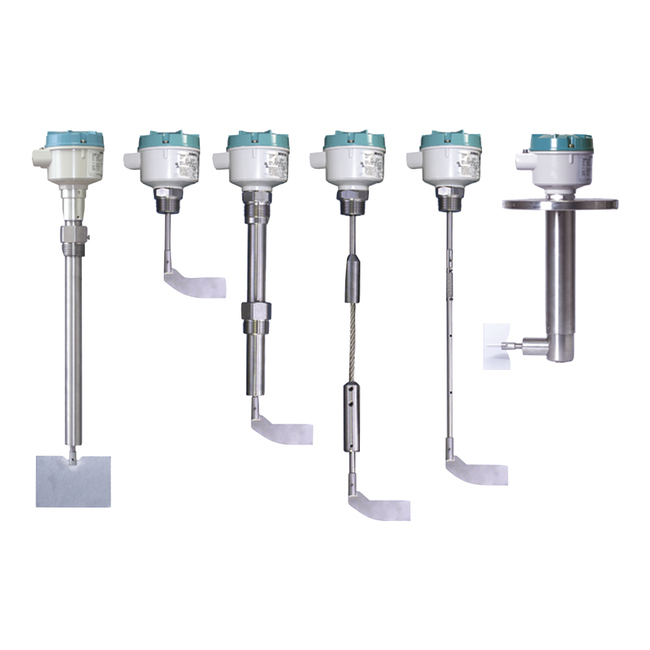

SITRANS LPS200 Rotary paddle point level switch, angled extension design: level detection in aggressive applications. Bottom or side mount with enhanced shaft protection. Extension options to 300 mm (11.81 inch). Process temperature: Up to +80 C (+176 F) Power supply: 230 V AC, 1 rev/min. Process connection Flanged: DN100 PN 6, EN1092-1, flat faced (1.4541/321) Process pressure: Up to 5 bar (72.5 psi) Process connection material: Stainless steel 303/321 (1.4305/1.4541) Extension length: 250 mm (9.84 inch) Measuring vane: Rectangular vane, 50 x 98 mm (1.97 x 3.86 inch) Approvals: ATEX II 1/2 D, RCM .

Type

LVL100/200 LVS200 LPS200

Alternative product id

7ML57281AA214AB0

Customs tariff number

90318080

Expected origin

DE

Weight

1.800 kg
