7ML5726-5ZC12-2BA1 J2A SIEMENS ⍾ 7ML57265ZC122BA1J2A

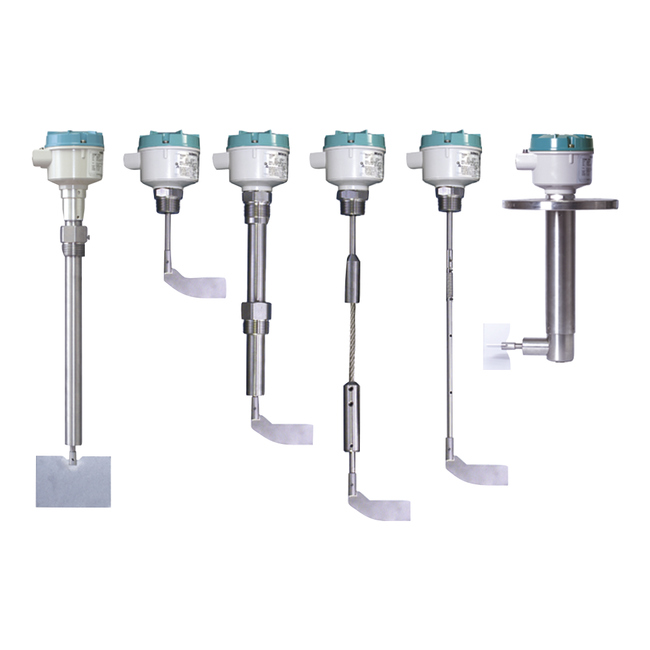

SITRANS LPS200 Rotary paddle point level switch, shaft protected design: level detection in aggressive solids. Compact, side or top mount, with enhanced shaft protection. Extension options to 300 mm (11.81 inch). Power supply: Universal Voltage, 1 rev/min. Process temperature: Up to +80 C (+176 F) basic version Process connection Threaded: 1-1/4" NPT ((Taper), ANSI/ASME B1.20.1) Process pressure: Up to 0.5 bar (7.25 psi) Process connection material: Stainless steel threads 303 (1.4305), flanges 321 (1.4541), tri-clamp 304 (1.4301) Extension length: 200 mm (7.87 inch) Extension material (protection tube): Stainless steel 303 (1.4305) Measuring vane: Boot shaped, 35 x 106 mm (1.38 x 4.17 inch) Approvals: CSA/FM Dust Ignition Proof, RCM

Type

LVL100/200 LVS200 LPS200

Customs tariff number

90318080

Expected origin

MT

Weight

2.200 kg
