7ML5725-1LH22-2HC0 SIEMENS ⍾ 7ML57251LH222HC0

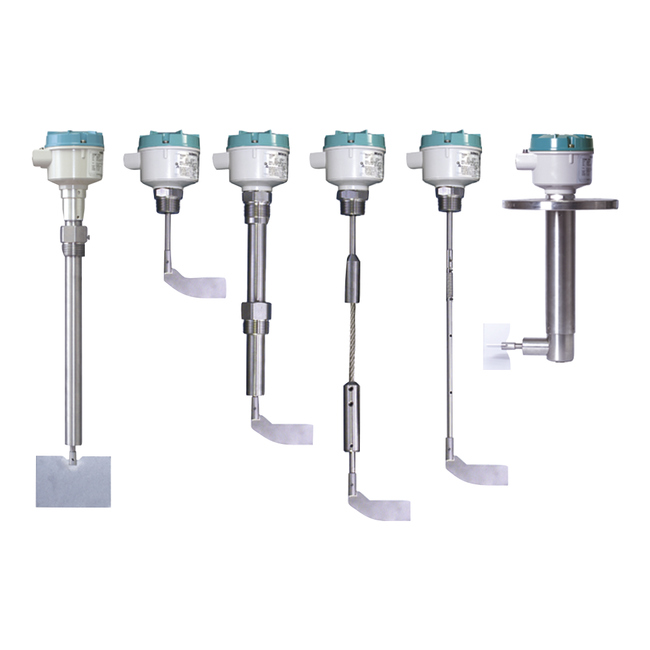

SITRANS LPS200 Rotary paddle point level switch, compact design: level detection in solids. Compact, side or top mount with extension options to 300 mm (11.81 inch). Process temperature: Up to +80 C (+176 F) Power supply: 24 V DC, 1 rev/min. Process connection Flanged: DN100 PN 6, EN1092-1 flat faced (1.4541/321) Process pressure: Up to 5 bar (72.5 psi) Process connection material: Stainless steel 303 (1.4305) flanges 321 (1.4541), tri-clamp 304 (1.4301) Extension length: 150 mm (5.91 inch) Measuring vane: Rectangular 50 x 98 mm (1.97 x 3.86 inch) Approvals: CSA/FM General Purpose, RCM, CE .

Type

LVL100/200 LVS200 LPS200

Alternative product id

7ML57251LH222HC0

Customs tariff number

90318080

Expected origin

DE

Weight

1.800 kg
