7ML5673-3DB00-1CB0-Z Y01 SIEMENS ⍾ 7ML56733DB001CB0ZY01

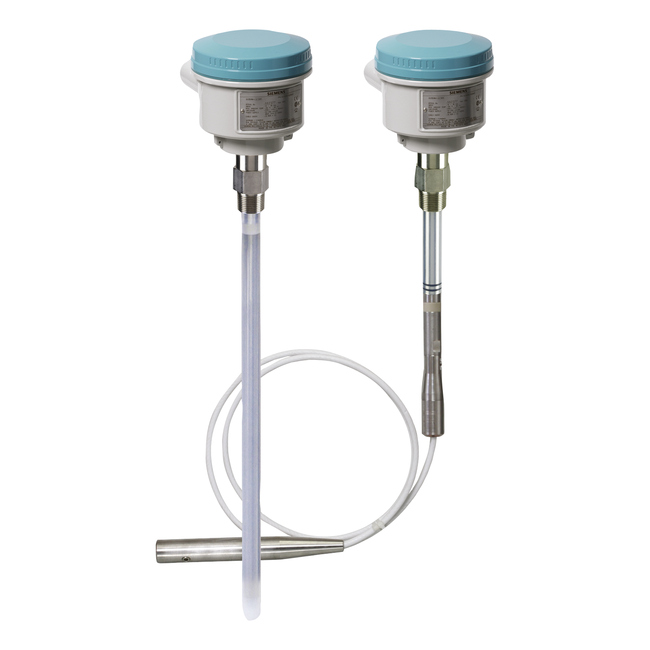

SITRANS LC300 PFA COATED CABLE VERSION WITH THREADED OR FLANGED PROCESS CONNECTION: AN INVERSE FREQUENCY SHIFT CAPACITANCE CONTINUOUS LEVEL TRANSMITTER FOR LIQUIDS AND SOLIDS APPLICATIONS. PROCESS CONNECTION THREADED, 316L (1.4404) STAINLESS STEEL: G 1 1/2" ((BSPP), EN ISO 228-1/PF (JIS-P), JIS B 0202) PROBE LENGTH: PROBE LENGTH (LENGTHS FROM FLANGE FACE) (THREADED LENGTHS INCLUDE PROCESS THREAD.): EXTENDED ROD, FACTORY ADJUSTED LENGTH 2001 TO 4000 MM (78.78 TO 157.48") THERMAL ISOLATOR: WITHOUT THERMAL ISOLATOR WETTED SEALS: FKM PROBE MATERIAL: PFA COATED CABLE AND 316L STAINLESS STEEL CABLE WEIGHT, PEEK ISOLATOR AND PFA LINED ACTIVE SHIELD. APPROVALS: FLAMEPROOF ENCLOSURE WITH IS PROBE, CE, C-TICK, ATEX II 1/2 G EEX D (IA) IIC T6...T1, ATEX II 1/2 D T100 C ENCLOSURE: ALUMINUM EPOXY COATED 2 X M20 X 1.5 CABLE INLET, IP65 MOUNTING EYE: WITHOUT MOUNTING EYE TOTAL INSERTION LENGTH: SPECIFY IN PLAIN TEXT DESCRIPTION (XXXX MM)

Type

Capacitance transmitters

Customs tariff number

90261029

Expected origin

CA

Weight

2.000 kg
