7ML5670-1BB10-0AC0-Z Y01 SIEMENS ⍾ 7ML56701BB100AC0ZY01

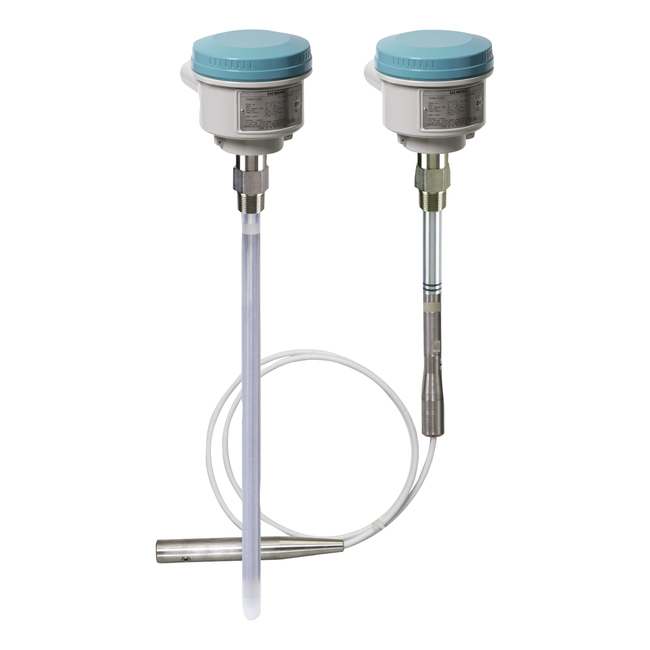

SITRANS LC300 Capacitance level transmitter, rod design: continuous, contact, monitors level or interface in liquids or solids. Extension options up to 5 m (16.40 ft). Process Connection Threaded, 316L (1.4404) stainless steel: R 1" ((BSPT), EN 10226/PT (JIS-T), JIS B 0203) Probe Length: Probe Length (Lengths from flange face) (Threaded lengths include process thread.): Extended rod, factory adjusted length 1001 to 2000 mm (39.41 to 78.74") Thermal Isolator: With thermal isolator (for process connection temperatures over +85 C (+185 F)) Wetted Seals: FKM Probe Material: 19 mm (0.75") diameter 316L stainless steel, PFA lined rod Approvals: General Safety (CSA, FM, CE, C-TICK) Enclosure: Aluminum epoxy coated 2 x 1/2" NPT via adapter - cable inlet, IP68 . Total insertion length: specify in plain text description (XXXX mm)

Type

Capacitance transmitters

Customs tariff number

90261029

Expected origin

DE

Weight

2.000 kg
