7ML5651-0DA00-0HA0 SIEMENS ⍾ 7ML56510DA000HA0

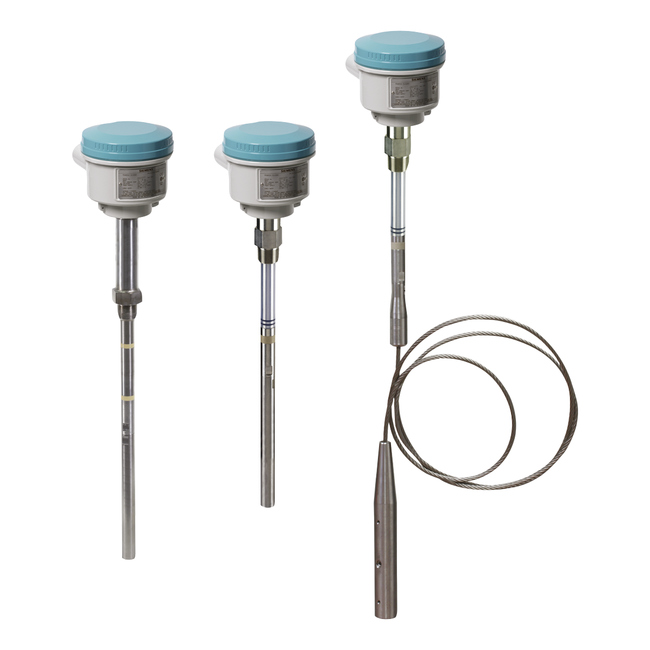

Pointek CLS300 RF Capacitance point level switch, cable design. Detects level and interface in aggressive liquids, solids, slurries, and foam. Cable extension options to 25 m (82.02 ft), adaptable sensitivity, with active shield to tune out build-up on probe. Process Connection: 1 1/2" NPT (Taper), ANSI/ASME B1.20.1 Probe Length: (Lengths from flange face) Extended cable, 3000 mm (118.11"), length can be shortened by customer Thermal Isolator: Without thermal isolator Wetted Seals: FKM Probe Material: Bare 316L stainless steel cable, PEEK isolators and 316L stainless steel cable weight Approvals: General Purpose (CSA, FM) Enclosure and Lid: Aluminum epoxy coated 2 x 1/2" NPT via adapter - cable inlet, IP65 Active Shield Length: Standard length - (125 mm threaded, 105 mm flanged)

Type

Capacitance transmitters

Alternative product id

7ML56510DA000HA0

Customs tariff number

90261029

Expected origin

DE

Weight

2.000 kg
