7ML5650-0DA10-0HA0 SIEMENS ⍾ 7ML56500DA100HA0

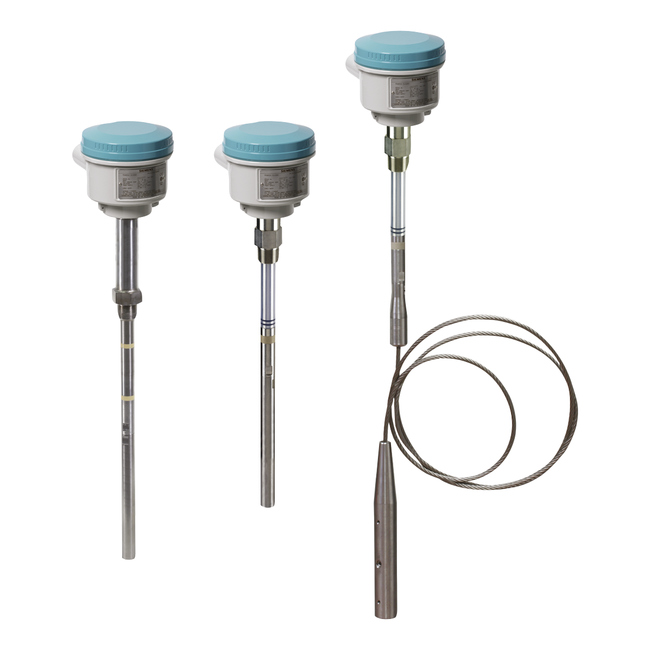

Pointek CLS300 - Standard - Rod Version with Threaded or Flanged process connection: Inverse frequency shift capacitance level switch with optional rod/cable choices and configurable output. It is ideal for detecting liquids, solids, slurries, foam and interfaces in demanding conditions where high pressure and temperatures are present. Process Connection: Threaded, 316L (1.4404) stainless steel 1 1/2" NPT (Taper), ANSI/ASME B1.20.1 Probe length: (length from flange face) (threaded lengths include process thread) Standard version, rod 350 mm (13.78") Thermal Isolator: With thermal isolator (for process connection temperatures over +85 C (+185 F)) Wetted Seals: FKM Probe Material: 316L Stainless Steel with PFA lining and PEEK Isolators Approvals: General Purpose (CSA, FM) Enclosure and Lid: Aluminum epoxy coated 2 x 1/2" NPT via adapter - cable inlet, IP65 Active Shield Length: Standard length - (125 mm threaded, 105 mm flanged)
- Type
- Capacitance transmitters
 |
SIEMENS 7ML5650-0DA10-0HA0 Datasheet PDF (en) Size: 152 KB |
Download |
