7ML5631-0AA00-0JA0 SIEMENS ⍾ 7ML56310AA000JA0

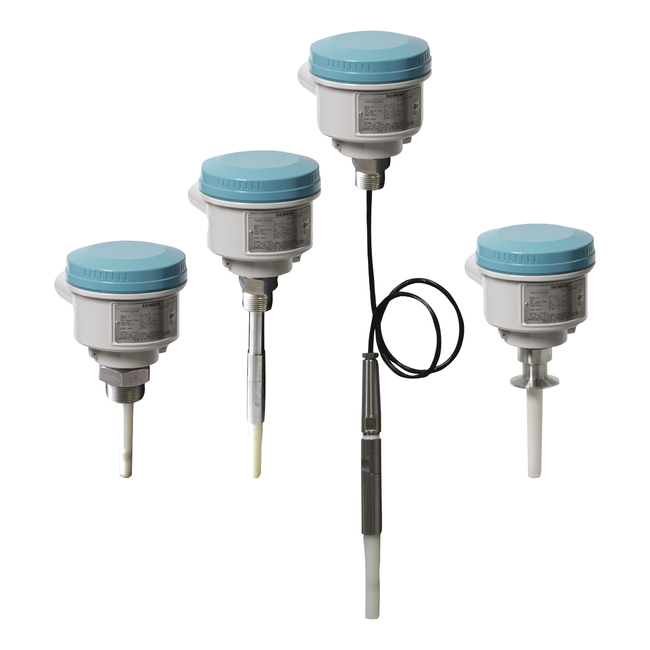

Pointek CLS200 RF Capacitance point level switch, cable design. Detects level and interface in liquids, solids, slurries, and foam. Cable extension options to 30 m (98.43 ft), adaptable sensitivity, with the ability to tune out build-up on probe. Process Connection: Threaded, 316L (1.4404) stainless steel: 3/4" NPT ((Taper), ANSI/ASME B1.20.1) Probe length: (length from flange face) (Threaded lengths include process thread) Extended cable, 3000 mm (118.11"), length can be shortened by customer Thermal Isolator: Without thermal isolator Wetted Seals: FKM and PTFE Probe Material: FEP Jacketed cable with PPS Probe Body Approvals: General Purpose (CE, RCM) Enclosure and Lid: Aluminum epoxy coated 2 x 1/2" NPT via adapter - cable inlet, IP65 .
- Type
- Capacitance transmitters
 |
SIEMENS 7ML5631-0AA00-0JA0 Datasheet PDF (en) Size: 114 KB |
Download |
