7ML5630-0BP00-0CA0-Z Y01 SIEMENS ⍾ 7ML56300BP000CA0ZY01

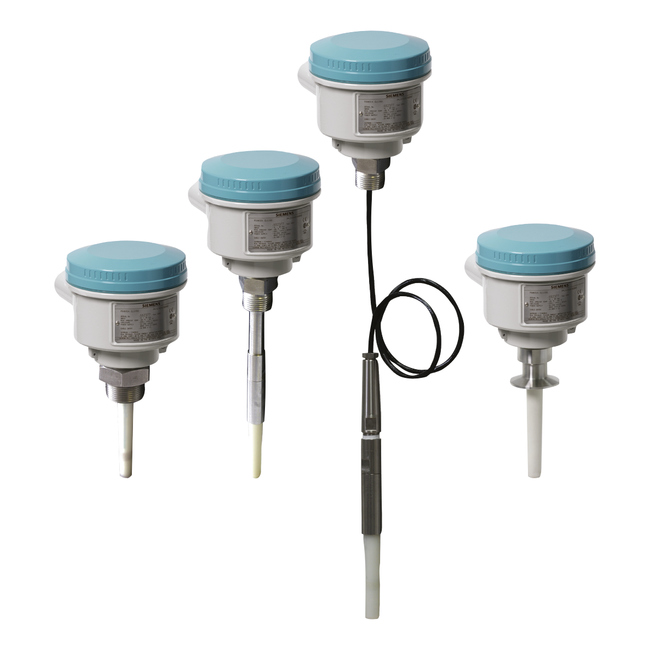

Pointek CLS200 - Standard - Rod Version with Threaded or Flanged process connection: Versatile inverse frequency shift capacitance level switch with optional rod/cable choices and configurable output, ideal for detection of liquids, solids,slurries, foam and interfaces Process Connection: Threaded, 316L (1.4404) stainless steel 1" NPT ((Taper),ANSI/ASME B1.20.1) Probe length: (length from flange face) (threaded lengths include process thread). Add order code Y01 and plain text: "Insertion length .... mm" Extended rod, 2001 to 3000 mm (78.78 to 118.11") Thermal Isolator: Without thermal isolator Wetted Seals: FKM Probe Material: 316L Stainless Steel with PPS probe body Approvals: Dust Ignition Proof CE, C-TICK, ATEX II 1/2 D T100 Enclosure and Lid: Aluminum epoxy coated 2x 1/2" NPT via adaptor- cable inlet,IP65 . Total insertion length: specify in plain text description (XXXX mm)

Type

Capacitance transmitters

Customs tariff number

90261029

Expected origin

DE

Weight

0.500 kg
