7ML5630-0AA10-1CA0-Z C11 SIEMENS ⍾ 7ML56300AA101CA0ZC11

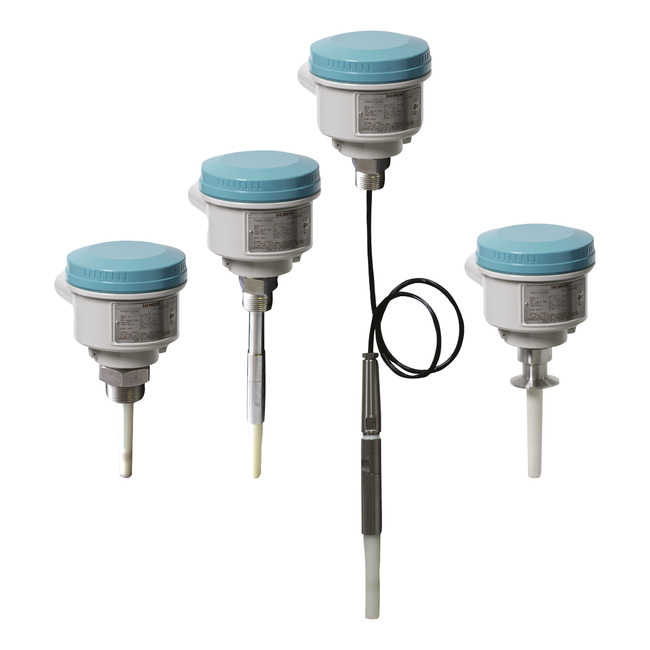

Pointek CLS200 - Standard - Rod Version with Threaded or Flanged process connection: Versatile inverse frequency shift capacitance level switch with optional rod/cable choices and configurable output, ideal for detection of liquids, solids,slurries, foam and interfaces Process Connection: Threaded, 316L (1.4404) stainless steel 3/4" NPT ((Taper), ANSI/ASME B1.20.1) Probe length: (length from flange face) (threaded lengths include process thread) Compact (Threaded 120mm (4.72"), Flanged 98mm (3.86")) Thermal Isolator: With thermal isolator (for process connections temperatures over +85 C(+85F)) Wetted Seals: FKM Probe Material: 316L Stainless Steel with PVDF probe body Approvals: Dust Ignition Proof CE, C-TICK, ATEX II 1/2 D T100 Enclosure and Lid: Aluminum epoxy coated 2x 1/2" NPT via adaptor- cable inlet,IP65 (description not available) Manufacturer's Test Certificate: M to DIN 55350, Part 18 and to ISO 9000

Type

Capacitance transmitters

Customs tariff number

90261029

Expected origin

CA

Weight

2.000 kg
