7ML5440-0FB00-0AA2 SIEMENS ⍾ 7ML54400FB000AA2

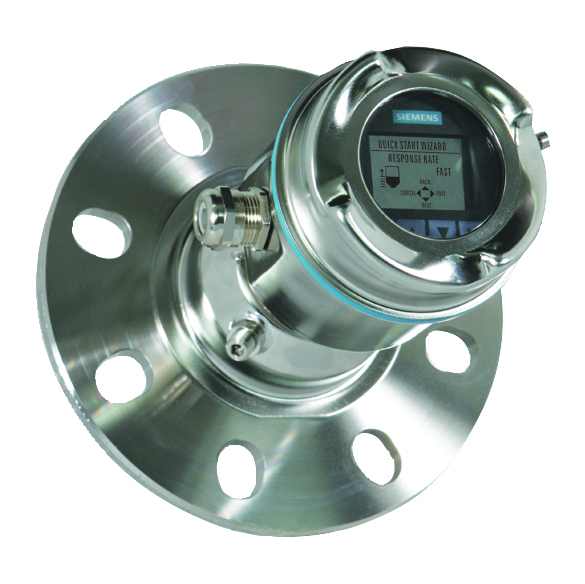

SITRANS LR560: A 2-WIRE, 78 GHZ FMCW RADAR LEVEL TRANSMITTER FOR CONTINUOUS MONITORING OF SOLIDS. ORDER HAND PROGRAMMER SEPARATELY! MEASUREMENT AND PROCESS TEMPERATURE RANGE: 40M (131 FT) MAX RANGE, -40 C DEGREES TO +100 C DEGREES PROCESS CONNECTION: UNIVERSAL FLAT-FACED FLANGE FITS ANSI/DIN/JIS FLANGES: 6" / 150 MM, 316L STAINLESS STEEL ENCLOSURE (WITH CABLE INLET): STAINLESS STEEL, 1 X M20 X 1.5 (PLASTIC GLAND INCLUDED) (description not available) (description not available) PRESSURE RATING: 0.5 BAR G (7.5 PSI G) MAXIMUM OUTPUT/COMMUNICATION: 4 TO 20 MA, HART APPROVALS: GENERAL PURPOSE, CSA US/C, INDUSTRY CANADA, FCC, CE, R&TTE, C-TICK LOCAL DISPLAY INTERFACE: WITH LDI (LOCAL DISPLAY INTERFACE)

Type

Radar transmitters

Alternative product id

7ML54400FB000AA2

Customs tariff number

90261029

Expected origin

CA

Weight

6.000 kg
