7ML5431-5QB20-0SA1 SIEMENS ⍾ 7ML54315QB200SA1

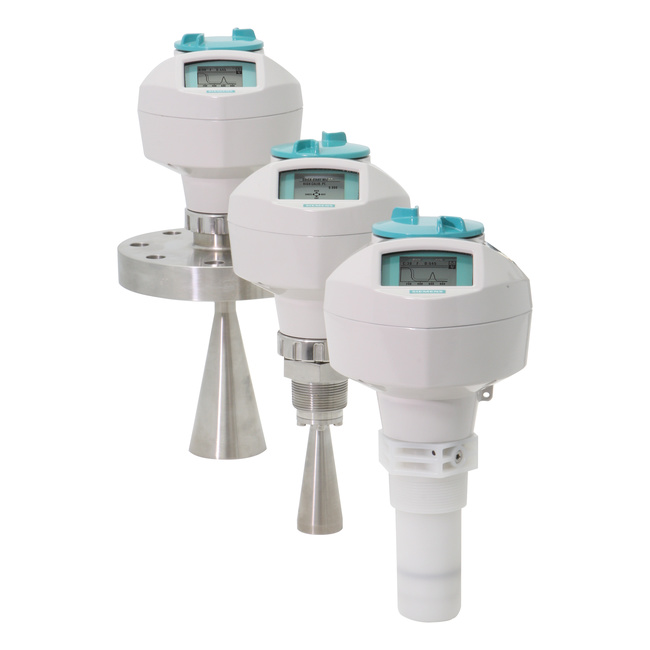

SITRANS LR250 Radar level transmitter: continuous, non-contact, 20 m (66 ft) range, for liquids and slurries. Process Connection and Antenna Material: Painted Aluminum 3 inch horn antenna Process Connection Types: Engineered polymer flange connections, only with painted horn antenna: Without flange, with mounting bracket, no polypropylene lens Communication/Output: 4-20mA HART, start-up at < 3.6mA . Enclosure/Cable inlet: Aluminum, 2 x 1/2 inch NPT Antenna: Painted aluminum Antenna Versions: 3 inch (80mm) polypropylene lens antenna Approvals: Ordinary Locations/General Purpose (Non-Ex), CE, UKCA, CSA, FM, FCC, RED, RCM Pressure Rating: 0.5 bar (7.5 psi g) max

Type

Radar transmitters

Alternative product id

7ML54315QB200SA1

Customs tariff number

90261029

Expected origin

CA

Weight

10.000 kg
