7ML5431-0DB10-1CA1 SIEMENS ⍾ 7ML54310DB101CA1

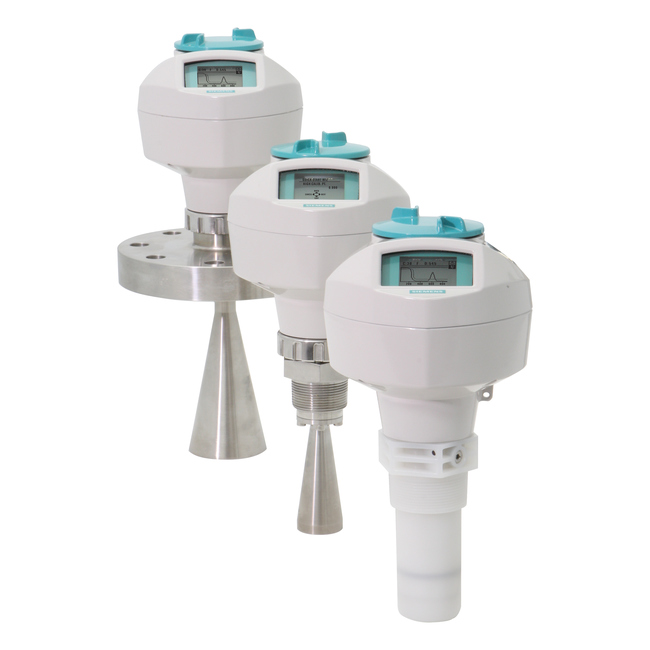

Sitrans LR250, 2 Wire,25GHz pulse radar level transmitter for continuous monitoring of liquids and slurries in storage and process vessels including high temperature and pressure. Antenna Dependant Ideal for small vessels. Process Connection and Antenna Material: 316L (1.4435 or 1.4404) stainless steel, PTFE emitter, FKM seal Process Connection Type: Flanged Connection 316L: DN 80 PN10/16 EN 1092-1 type A, flat faced Communication: PROFIBUS PA (description not available) Enclosure (with Cable Inlets): Aluminum, Epoxy paint, 2 x M20 x 1.5 Antenna Version, Size/Extension: Antenna /Extension 316L: 3 inch Horn (fits 3 inch ASME or DN 80 nozzles) Approvals: General Purpose, CE, CSA, FM, FCC, R&TTE, RCM Pressure Rating: 0.5 bar (7.5 psi g) maximum

Type

Radar transmitters

Alternative product id

7ML54310DB101CA1

Customs tariff number

90261029

Expected origin

CA

Weight

10.000 kg
