7ML5431-0AD20-1DA1 SIEMENS ⍾ 7ML54310AD201DA1

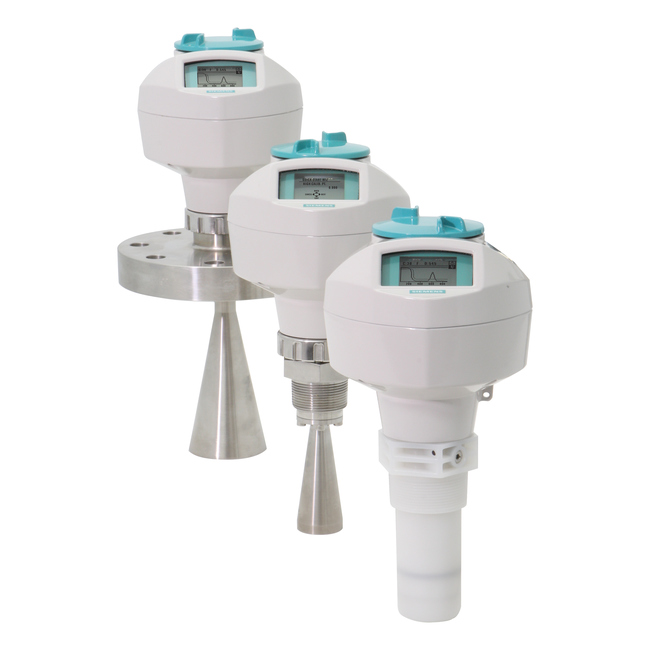

SITRANS LR250 Radar level transmitter: continuous, non-contact, 20 m (66 ft) range, for liquids and slurries. Process Connection and Antenna Material: 316L (1.4435 or 1.4404) stainless steel, PTFE emitter, FKM seal Process Connection Type: Threaded connections 316L: 2" NPT (Taper) (ASME B1.20.1) (tapered thread) Communication/Output: 4-20mA HART, start-up at < 3.6mA . Enclosure/Cable inlet: Aluminum, 2 x M20 x 1.5 Antenna Version, Size/Extension: Antenna /Extension 316L: 4 inch Horn (fits 4 inch ASME or DN 100 nozzles) Approvals: Ordinary Locations/General Purpose (Non-Ex), CE, UKCA, CSA, FM, FCC, RED, RCM Pressure Rating: 0.5 bar (7.5 psi g) max

Type

Radar transmitters

Alternative product id

7ML54310AD201DA1

Customs tariff number

90261029

Expected origin

CA

Weight

9.000 kg
