7ML5427-0BG00-0AC1 SIEMENS ⍾ 7ML54270BG000AC1

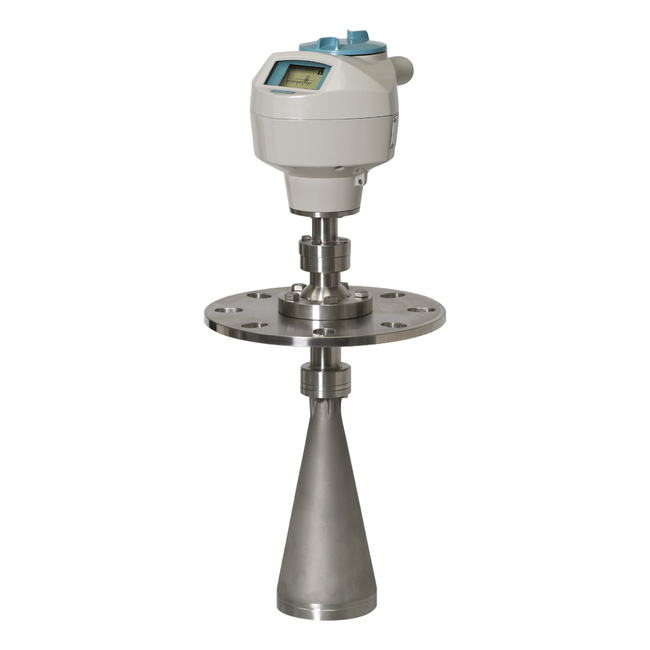

Sitrans LR 260: 2-wire, 25 GHz pulse radar level transmitter for continuous monitoring of solids to a range of 30 m (98.4 ft). Order hand programmer separately! (description not available) Process connection: Universal, flat faced flange fits ANSI/DIN/JIS flanges. Easy Aimer with integral Easy Aimer ball 3"/80 mm Antenna: 3" horn antenna, with 100 mm extension Purge (Self Cleaning) Connection: No Purge connection (description not available) Output/Communication: 4 to 20 mA, HART Cable Inlet: 2 x M20 x 1.5 Approvals: ATEX II 1D, 1/2D, 2D T100 C, CE, R&TTE, C-TICK Pressure Rating: 0.5 bar (7.25 psi) maximum

Type

Radar transmitters

Alternative product id

7ML54270BG000AC1

Customs tariff number

90261029

Expected origin

CA

Weight

6.000 kg
