7ML5426-0BH10-0CA0-Z C11 SIEMENS ⍾ 7ML54260BH100CA0ZC11

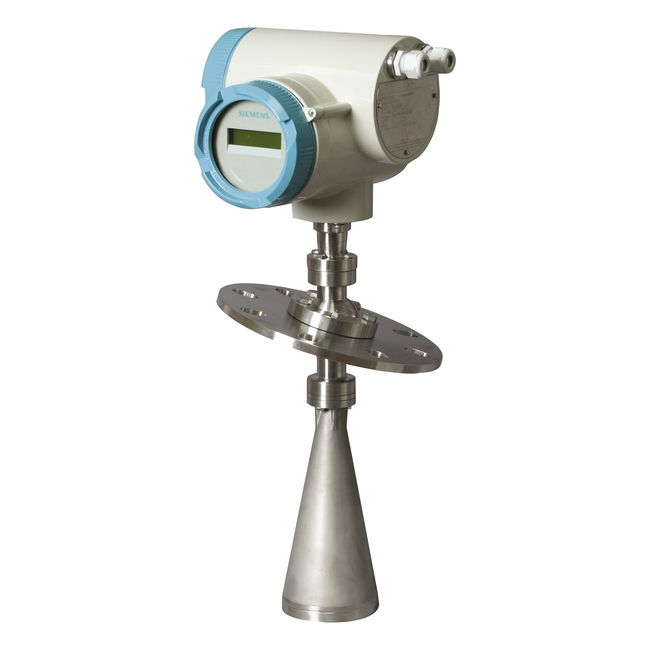

Sitrans LR 460: 4-wire, 24 GHz FMCW radar fill level transmitter for measuring ranges up to 100 m (329 ft); suitable for continuous monitoring of bulk materials in silos. Ideal for applications with strong dust accumulation and high temperatures up to 200 °C (392 F). Hand-held programming device must be ordered separately. (description not available) Process connection: Universal flat flange, 0.5 bar (7.25 psi) maximum with integrated adjustable flange Type EA: 4" / 100 mm Antenna: 4" horn antenna, suitable for 100 mm (4") Nozzle with 200 mm extension Purge connection (self-cleaning): Purge connection (description not available) Output/communication: 4 ... 20 mA, HART Auxiliary power/cable entry: 24 V DC, 2 x M20 x 1.5 Approvals: General use, CSAUS/C, Industry Canada, FCC, CE and R&TTE (description not available) Factory certificate: M to DIN 55350, Part 18, and to ISO 9000

Type

Radar transmitters

Customs tariff number

90261029

Expected origin

CA

Weight

12.000 kg
