7ML5422-3CH30 SIEMENS ⍾ 7ML54223CH30

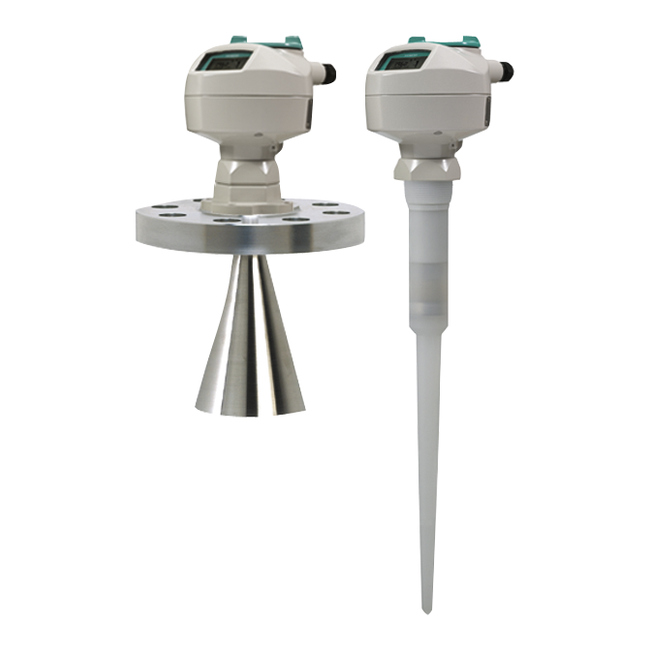

SITRANS LR 200, Uni-Construction polypropylene rod antenna version 2-wire, 6 GHz pulse radar level transmitter for continuous monitoring of liquids and slurries in storage and process vessels including high temperature and pressure, to a range of 20 m (66 ft). Enclosure / Cable Inlet: Aluminum, Epoxy painted, 2 x M20 x 1.5, Polypropylene antenna type - (Max. 3 Bar pressure and +80 C): G 1-1/2 inch ((BSPP), EN ISO 228-1) comes with integral 100 mm shield Approvals: Flame Proof, ATEX II 1/2G Ex dmbia IIC T4 Ga/Gb, CE, R&TTE, C-TICK; GOST-R Communication / Output: 4-20mA HART, start-up at

Type

Radar transmitters

Customs tariff number

90261029

Expected origin

CA

Weight

2.000 kg
