7ML5422-3BE30 SIEMENS ⍾ 7ML54223BE30

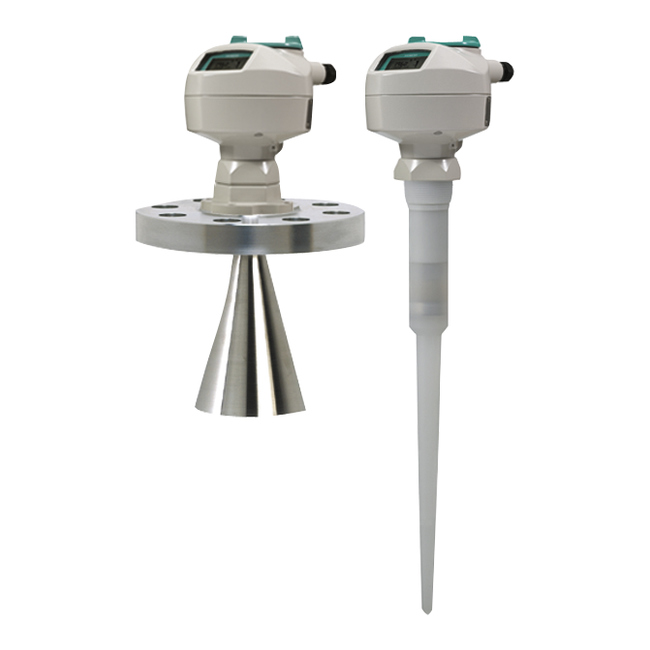

SITRANS LR200 Radar level transmitter with polypropylene rod: continuous, non-contact, 20 m (66 ft) range, for liquids and slurries. Enclosure / Cable Inlet: Aluminum, Epoxy painted, 2 x M20 x 1.5, Polypropylene antenna type - (Max. 3 Bar pressure and +80'C): R 1-1/2 inch ((BSPT), EN 10226-1) comes with integral 100 mm shield Approvals: Intrinsically Safe; ATEX II 1G Ex ia IIC T4 Ga; UKEX II 1G Ex ia IIC T4 Ga; IECEx Ex ia IIC T4 Ga; INMETRO Ex ia IIC T4 Ga, IP67/IP68; EAC Ex 0Ex ia IIC T4 Ga X; CE, UKCA, RED, RCM, EAC Communication / Output: 4-20mA HART, start-up at

Type

Radar transmitters

Customs tariff number

90261029

Expected origin

CA

Weight

2.000 kg
