7ML5110-1DD07-4CK3-Z E32 SIEMENS ⍾ 7ML51101DD074CK3ZE32

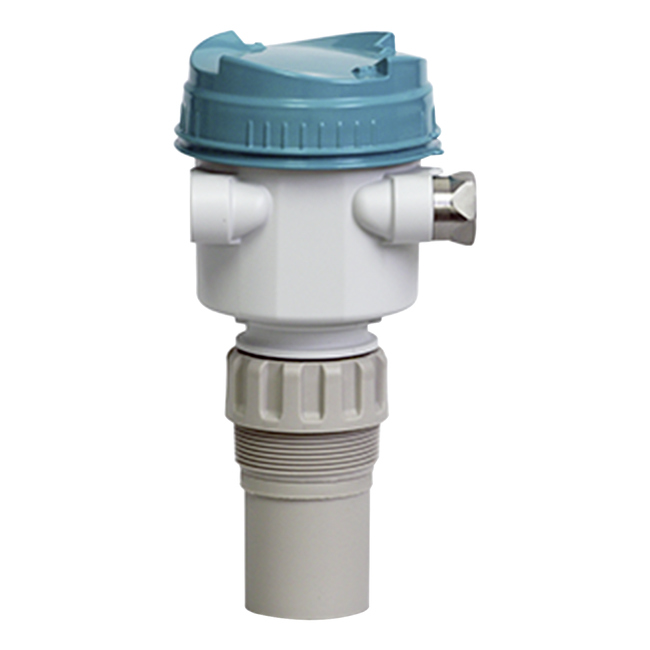

SITRANS Probe LU240 Ultrasonic level transmitter ideal for level, volume, and volume flow measurements. It works with liquids, slurries, and bulk materials up to 12 m (40 ft). . Communications: HART (4 ... 20 mA) level, volume, volume flow Ingress protection: IP66, IP68, TYPE 4X, 6 Measurement range/ wetted parts: 200 ... 6000 mm (7.87 ... 236.22 inch), PVDF Copolymer Process connection: 2" NPT [(Taper), ASME B1.20.1] . Non wetted parts: Plastic (PBT/PC material) Enclosure Type of protection : Atex/IEC Ex Ex I (ia) CSA/FM (Class 1, Div 1/Zone 0) IS / FM NI (Class 1, Div 2) Electrical connections/ cable entries: 1 x 1/2" NPT (no cable gland provided) Local HMI: With display (clear lid of PC material) Approvals: FM non-incendive - Class I, Div. 2, Groups A,B,C,D T5 (Ta = 80-C), T6 (Ta = 40-C)

Type

Ultrasonic transducers

Customs tariff number

90268020

Expected origin

CA

Weight

1.250 kg
