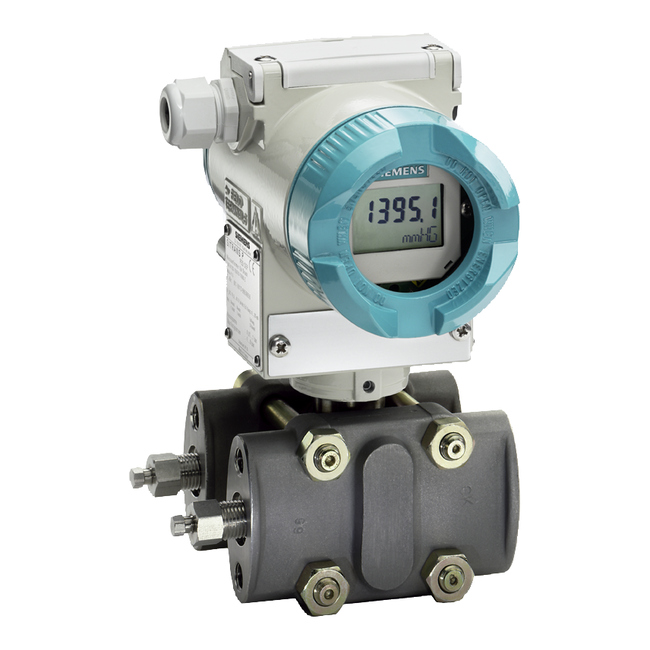

7MF4434-1DA02-1AB6-Z Y01 SIEMENS ⍾ 7MF44341DA021AB6ZY01

SITRANS P DS III / P410, PROFIBUS PA, TRANSMITTER FOR DIFFERENTIAL PRESSURE AND FLOW PN 32/160 MEASURING CELL FILLING SILICONE NORMAL CLEANING NOMINAL MEASURING RANGE: PN 160 (MWP 2320 PSI): 250 MBAR (100.4 INH2O), MAX. STATIC PRESSURE 160 BAR DIAPHRAGM STAINLESS STEEL PARTS OF MEASURING CELL STAINLESS STEEL PROCESS CONNECTION: 1/4-18 NPT MOUNTING THREAD: M10 DIE-CAST ALUMINIUM HOUSING, PROCESS FLANGE BOLTS STAINLESS STEEL STANDARD DESIGN . NONE EXPLOSION PROTECTION ELECTRIC CONNECTION AND CABLE INLET: CABLE GLAND M20 X 1.5 HOUSING COVER WITH WINDOW MEASURING RANGE TO BE SET SPECIFY IN PLAIN TEXT: Y01: ... UP TO ... MBAR, BAR, KPA, MPA, PSI

Type

Pressure transmiters DSIII
