SIEMENS catalog

Make :
SIEMENS
MPN :
7MF4433-1DA02-2AB7-Z Y01+Y22
Product ID :
7MF44331DA022AB7ZY01Y22

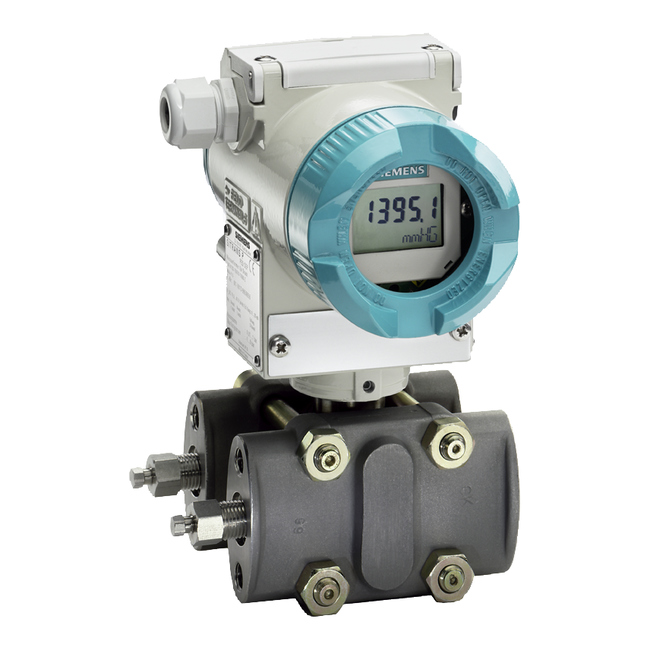

SITRANS P DS III / P410, HART, 4-20 mA transmitter for differential pressure and flow PN 32/160 gas 1/liquids 1 art. 3.3 sep Measuring cell filling silicone normal cleaning Span: PN 160 (MWP 2320 psi): 2,5 to 250 mbar (1.004 to 100.4 inH2O), max. static pressure 160 bar Diaphragm stainless steel parts of measuring cell stainless steel Process connection: 1/4-18 npt mounting thread: M10 Die-cast aluminium housing, process flange bolts stainless steel International design english inscription documentation as cd None explosion protection Electric connection and cable inlet: cable gland M20 x1.5 Housing cover with window customized adjustment supplement Y21 required Range (linear characteristic) specify in plain text: Y01:... to ...mBar,kpa,mpa,... Setting of digital indicator in non-pressure units specify in plain text Y22: .... to .... l/m3, m3/h, m (measuring range in pressure units (Y01) mandatory)
