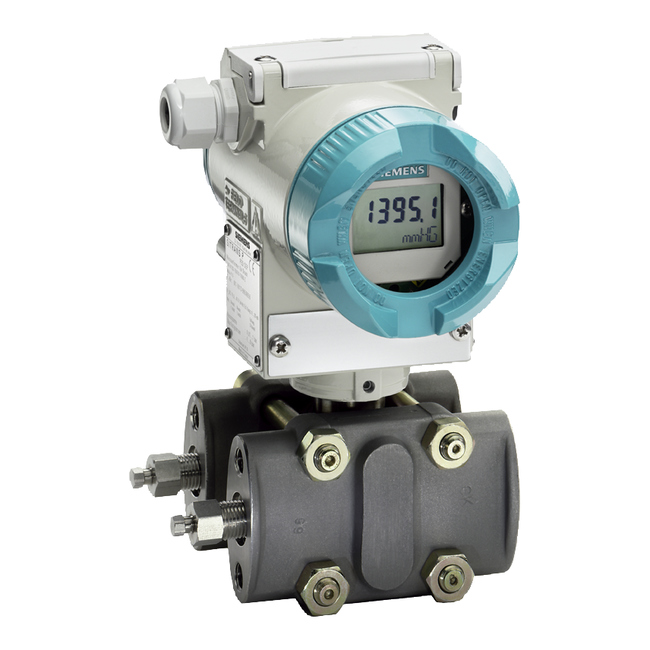

7MF4433-1BA02-2AB7-Z Y01+Y22 SIEMENS7MF44331BA022AB7ZY01Y22

SITRANS P DS III / P410, HART, 4-20 mA transmitter for differential pressure and flow PN 32/160 gas 1/liquids 1 art. 3.3 sep Measuring cell filling silicone normal cleaning Span: PN 32 (MWP 464 psi): 1 to 20 mbar (0.4015 to 8.03 inH2O), max. static pressure 32 bar Diaphragm stainless steel parts of measuring cell stainless steel Process connection: 1/4-18 npt mounting thread: M10 Die-cast aluminium housing, process flange bolts stainless steel International design english inscription documentation as cd None explosion protection Electric connection and cable inlet: cable gland M20 x1.5 Housing cover with window customized adjustment supplement Y21 required Range (linear characteristic) specify in plain text: Y01:... to ...mBar,kpa,mpa,... Setting of digital indicator in non-pressure units specify in plain text Y22: .... to .... l/m3, m3/h, m (measuring range in pressure units (Y01) mandatory)

  • 7MF0300-1JD01-5SF2-Z A01+D42+E20+H02+Y01+Y15+Y21

    SITRANS P320 Pressure transmitter basic Gauge pressure HART (4...20 mA) Measuring cell filling: Silicone oil Maximum measuring span: 1000 mbar (14.5 psi) Male thread G1/2A (DIN EN

  • 7MF0300-1NU01-5AM2-Z E00

    SITRANS P320 Pressure transmitter basic Gauge pressure HART (4...20 mA) Measuring cell filling: Silicone oil Maximum measuring span: 4000 mbar (58 psi) Version for diaphragm seal P

  • 7MF0300-1QD01-5AF2-Z A00+E00

    SITRANS P320 Pressure transmitter Gauge pressure HART (4...20 mA) Measuring cell filling: Silicone oil Maximum measuring span: 16 bar (232 psi) Male thread G1/2A (DIN EN 837-1) Dia

  • 7MF0300-1QU01-5AM2-Z E00

    SITRANS P320 Pressure transmitter basic Gauge pressure HART (4...20 mA) Measuring cell filling: Silicone oil Maximum measuring span: 16 bar (232 psi) Version for diaphragm seal Pre

  • 7MF0300-1TD01-5AF2-Z A00+E00+H01+Y01+Y21

    SITRANS P320 Pressure transmitter basic Gauge pressure HART (4...20 mA) Measuring cell filling: Silicone oil Maximum measuring span: 63 bar (914 psi) Male thread G1/2A (DIN EN 837-

  • 7MF0300-1WE01-5MF2-Z A01+B13+D42+E20+H02+T03

    SITRANS P320 Pressure transmitter basic Gauge pressure HART (4...20 mA) Measuring cell filling: Silicone oil Maximum measuring span: 400 bar (5802 psi) Female thread 1/2-14 NPT Dia

  • 7MF0300-3TF01-5AM2-Z A03+B11+E00+H02+Y01+Y22

    SITRANS P320 Pressure transmitter basic Gauge pressure HART (4...20 mA) Measuring cell filling: Inert liquid Maximum measuring span: 63 bar (914 psi) Male thread 1/2-14 NPT Diaphra

  • 7MF0330-1LR01-5AM2-Z A00+B11+E00

    SITRANS P320 Pressure transmitter Absolute pressure (with differential pressure measuring cell) HART (4...20 mA) Measuring cell filling: Silicone oil Maximum measuring span: 1300 m

  • 7MF0340-1BL01-5MF2-Z A01+B13+D42+E20+H02+U02

    SITRANS P320 Pressure transmitter basic Differential pressure and flow PN160 HART (4...20 mA) Measuring cell filling: Silicone oil Maximum measuring span: 20 mbar (8.037 inH²O) Ova

  • 7MF0340-1DL01-5MF2-Z A01+B13+D42+E20+H02+U02

    SITRANS P320 Pressure transmitter basic Differential pressure and flow PN160 HART (4...20 mA) Measuring cell filling: Silicone oil Maximum measuring span: 60 mbar (24.11 inH²O) Ova

  • 7MF0340-1GM01-5AF2-Z A00+B11+E00

    SITRANS P320 Pressure transmitter basic Differential pressure and flow PN160 HART (4...20 mA) Measuring cell filling: Silicone oil Maximum measuring span: 250 mbar (100.5 inH²O) Ov

  • 7MF0340-1HM01-5AF2-Z A00+B11+E00

    SITRANS P320 Pressure transmitter basic Differential pressure and flow PN160 HART (4...20 mA) Measuring cell filling: Silicone oil Maximum measuring span: 600 mbar (241.1 inH²O) Ov
