7MF0340-1ML21-5AF2-Z A00+D20+E01+Y15 SIEMENS ⍾ 7MF03401ML215AF2ZA00D20E01Y15

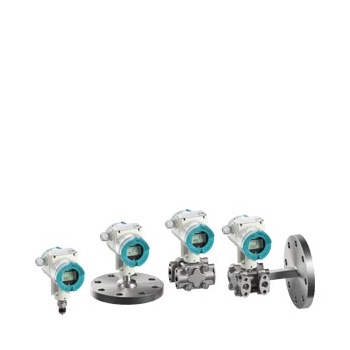

SITRANS P320 Pressure transmitter Differential pressure and flow PN160 HART (4...20 mA) Measuring cell filling: Silicone oil Maximum measuring span: 1600 mbar (643 inH²O) Oval flange, fastening thread: 7/16-20 UNF (IEC 61518) Sensor pressure: Process connection: Alloy C22/2.4602, Seal diaphragms: Alloy C276/2.4819; Sensor differential pressure: Process connection: Alloy C276/2.4819, Seal diaphragms: Alloy C276/2.4819, Process flange: Stainless steel 316/1.4408 Die-cast aluminum housing Dual chamber device no Ex 2 x M20 x 1.5 With display (lid with glass window) Cable gland and sealing plug attached, plastic Double layer coating (epoxy resin and polyester) 120 µm of enclosure and cover General approval without Ex approval: World (CE, UKCA, RCM, CSA, EAC, FM, KC) Location designation (Tag) (stainless steel plate. device parameters. max. 32 characters) TAG plate without marking please order via option D40

Type

Pressure transmiters SITRANS P320

Customs tariff number

90262020

Expected origin

FR

Weight

4.975
