7MF0340-1HX01-5AM2-Z A00+B13+E01 SIEMENS ⍾ 7MF03401HX015AM2ZA00B13E01

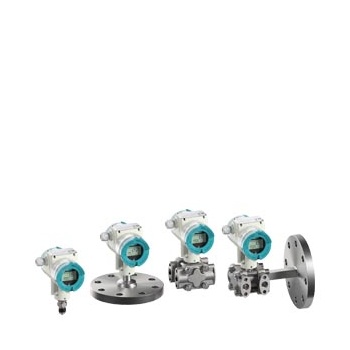

SITRANS P320 Pressure transmitter Differential pressure and flow PN160 HART (4...20 mA) Measuring cell filling: Silicone oil Maximum measuring span: 600 mbar (241.1 inH²O) Version for diaphragm seal (direct mounting on one side; with capillary line on the other side) with fastening thread 7/16-20 UNF (IEC 61518), please order associated remote seal with separate item. System delivery time: Delivery time of the transmitter included in the delivery time of the remote seal. Process connection: Stainless steel 316L/1.4404, Seal diaphragms: Stainless steel 316L/1.4404, Sensor differential pressure: Process flange: Stainless steel 316/1.4408 Die-cast aluminum housing Dual chamber device no Ex 2 x 1/2-14 NPT With display (lid with glass window) Cable gland and sealing plug attached, plastic Labeling type plate Spanish - bar General approval without Ex approval: World (CE, UKCA, RCM, CSA, EAC, FM, KC)

Type

Pressure transmiters SITRANS P320

Customs tariff number

90262020

Expected origin

FR

Weight

4.975 kg
