7ME3570-1JA40-0EQ1 SIEMENS ⍾ 7ME35701JA400EQ1

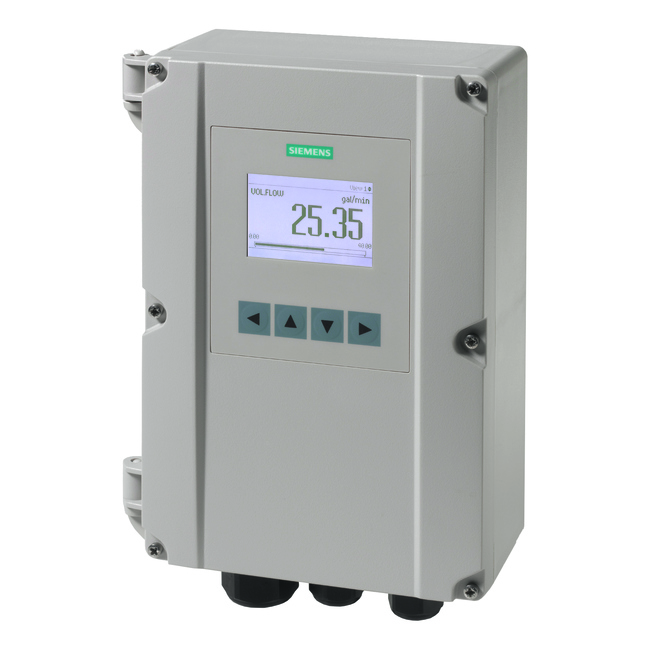

SITRANS FS220 - Clamp On SITRANS FS220 1-path ultrasonic flow meter for volume measurement of liquids. For simple use in the areas of water and sewage, heating, ventilation and air conditioning technology. Ideal for retrofitting in water supply networks for leakage monitoring. Transmitter FST020 Graphical display highlighted with push button, Modbus (RTU), Outputs (passive): Current, Relay, Pulse, complete with cable glands Power supply: 90 - 240 V AC (50 / 60 Hz) . . . FSS200 Sensor pair Uníversal size D3, for any pipe material, outer diameter range: 203 - 610 mm (8 - 24"), temperature -40°C - +121°C (-40°F to 250°F), with mounting frame kit for pipes up to 650 mm (25"). Sensor cabels Coax PVC, submersible 10 m (32.8 ft), with F-connector, shortenable terminated on one end side, -40° C to 80°C (-40°F to 176° F) UL, ULc, CE, KC

Type

SITRANS F US (ultrasonic)

Customs tariff number

90268020

Expected origin

FR

Weight

4.080 kg
