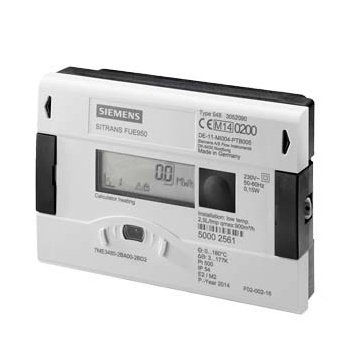

7ME3480-2AA35-2HD1 SIEMENS ⍾ 7ME34802AA352HD1

SITRANS FUE950 Custody transfer approved energy calculator, for use with flow meters of type FUS380, FUE380, MAG 8000, FS220 and MAG 5000/6000 transmitter. Suitable for thermal energy measurement of liquids for applications in district heating and chiller plants. - Pulse value 1 L/Pulse, max. flow rate 360 m3/h (with option L05: 1 gal/p., max. flow rate 6000 GPM). For heating applications, Flowmeter placed at low temperture (MID conform). PT500 sensor pair (6/140 mm), 4-wire type incl. 5 m cable, 6 mm sensor diameter and 140 mm length, with MID & PTB-K7.2 approval. Stainless steel pockets for 6 mm sensors, 120/135 mm - G1/2 inch, max. PN40 and 5 m/s, (2 pcs). Power supply Mains powered with 230 VAC module (incl. back-up battery). Module 1 M-Bus, Module 2 Pulse 2 outputs. MWh, kW, m3, m3/h - 1 digit resolution. Calculator variant for China according to EU type approval Suitable for billing of heat quantities (also combined) if national approvals exist. Not for use in Europe.

Type

SITRANS F US (ultrasonic)

Customs tariff number

90269000

Expected origin

DE

Weight

2.500
