7MC7500-1JK06-1CA2-Z C35+E01+G20 SIEMENS ⍾ 7MC75001JK061CA2ZC35E01G20

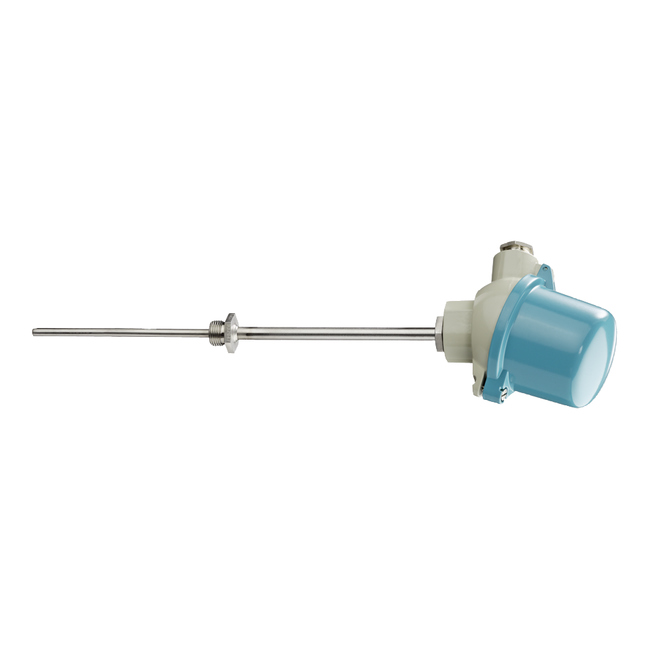

SITRANS TS500 Temperature sensor in modular design, for installation in existing thermowells Material measuring insert: - for RTD: 316L/316Ti - for TC: Alloy 600 Design of the temp. sensor: For existing thermowells (with explosion protection, observe minimum thickness) Process connection: Thread NPT 1/2" Insertion length untensioned: U=1251...1500 mm Initial: 1500 Diameter of the measuring tip: 6mm Extension length EU type: X = 65 mm (M = 81 mm) Alignable sensor spring at DIN measuring insert Connection head type: BC0: Aluminum; Hinged cover high; IP65 Meas. range: -50 ... 400Cel; Sensor quant., Type, Accuracy 1xPt100, Cl.A -30 ... 300Cel; Basic version Compliance declaration DIN EN 10204-2.1: Declaration of compliance with the order Explosion protection (ATEX, IECEx) For EU / Australia Intrinsic safety ia,"ic"" gas / dust Head cable inlet Connection head 1/2" NPT without cable gland; with head type AU0 and AH0 only IP66

Type

Temperature sensors

Customs tariff number

90251900

Expected origin

FR

Weight

1.000
