7MC7500-1JE06-2AC2-Z E00 SIEMENS ⍾ 7MC75001JE062AC2ZE00

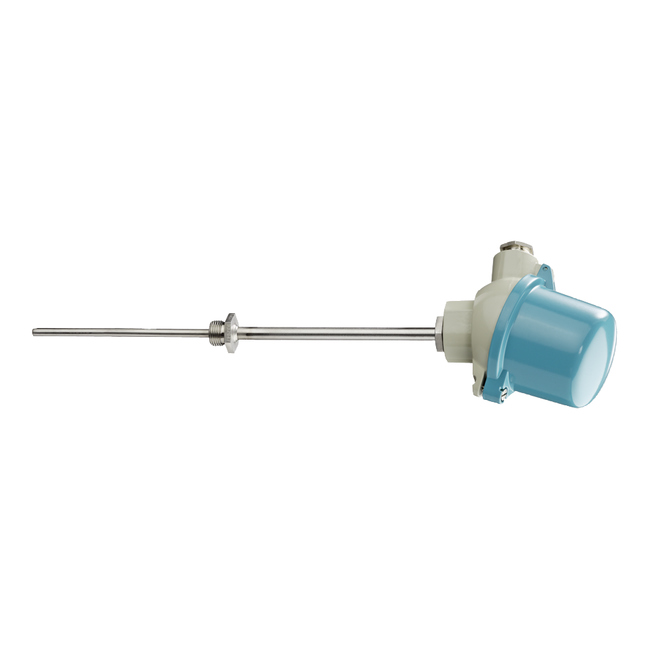

SITRANS TS500 Temperature sensor in modular design, for installation in existing thermowells Material measuring insert: - for RTD: 316L/316Ti - for TC: Alloy 600 Design of the temp. sensor: For existing thermowells (with explosion protection, observe minimum thickness) Thread to the thermowell NPT 1/2" Insertion length untensioned: U = 401...500 mm Initial: 500 Diameter of the measuring tip: 6mm Extension length EU type: X = 139 mm (M = 155 mm) Alignable sensor spring at DIN measuring insert Connection head type: BA0: Aluminum; flange lid IP65 Meas. range:-200 ... 600Cel; Sensor quant., Type, Accuracy 1xPt100, Cl.A -100 ... 450Cel; Extended measuring range Requirements non-Ex for EU / Australia

Type

Temperature sensors

Customs tariff number

90251900

Expected origin

FR

Weight

1.000
