7MC7500-1JB06-6GB2-Z E01 SIEMENS ⍾ 7MC75001JB066GB2ZE01

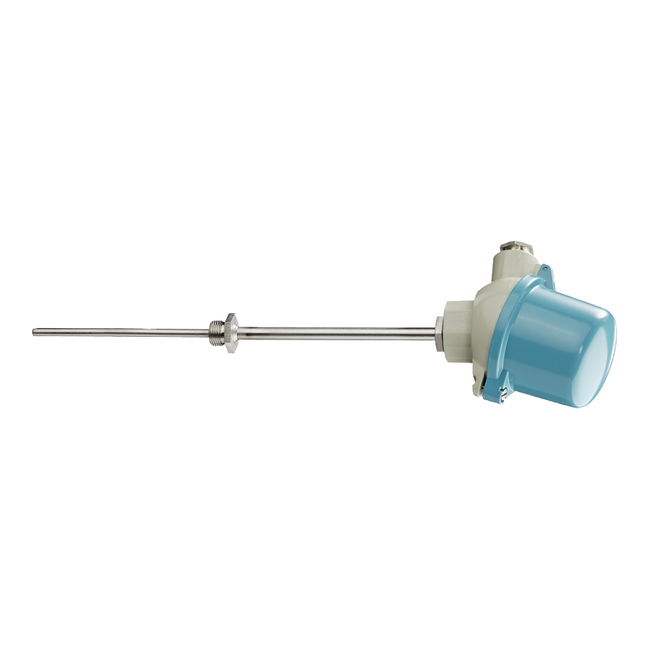

SITRANS TS500 Temperature sensor in modular design, for installation in existing thermowells Material measuring insert: - for RTD: 316L/316Ti - for TC: Alloy 600 Design of the temp. sensor: For existing thermowells (with explosion protection, observe minimum thickness) Thread to the thermowell NPT 1/2" Insertion length untensioned: U = 101...200 mm Initial: 200 Diameter of the measuring tip: 6mm Extension length US type: X = 74 mm Nipple: Integrated sensor spring Connection head type: AG0; Aluminum; Screw cover; IP66/68 Ex d in combination with "E03"" Meas. range: -50 ... 400Cel; Sensor quant., Type, Accuracy 1xPt100, Cl.A -30 ... 300Cel; Increased vibration resist. Explosion protection (ATEX, IECEx) For EU / Australia Intrinsic safety ia,"ic"" gas / dust

Type

Temperature sensors

Customs tariff number

90251900

Expected origin

FR

Weight

1.000
