70MH-EB010-BP01020 Murrelektronik ⍾ 70MHEB010BP01020

A10 female 10-pole, Push-in, 250 V, 20 A; No. of poles : 10 + PE; Connection : Push-In terminals; Connection cross section : 0.14...2.5 mm² (AWG 26...14); Stripping length : 8 mm; Operating voltage : 250 V AC/DC; Operating current : 16 A; Over voltage category : III; Rated surge voltage : 4.0 kV; Mating cycles : min. 500; Type : Female; Size : A10; Pollution Degree : 3; Material (contact carrier) : PC; Material (contact) : Copper alloy; Material (contact surface) : Ag; Flammability class : V-0 (acc. to UL 94); Climatic category : 40/125/21; Temperature range : -40...+125 °C; Current load capacity : see derating curve; eClass : 27143424; Packaging unit : 1

Type

Inserts

Customs tariff number

85366990

Weight

0.044 kg

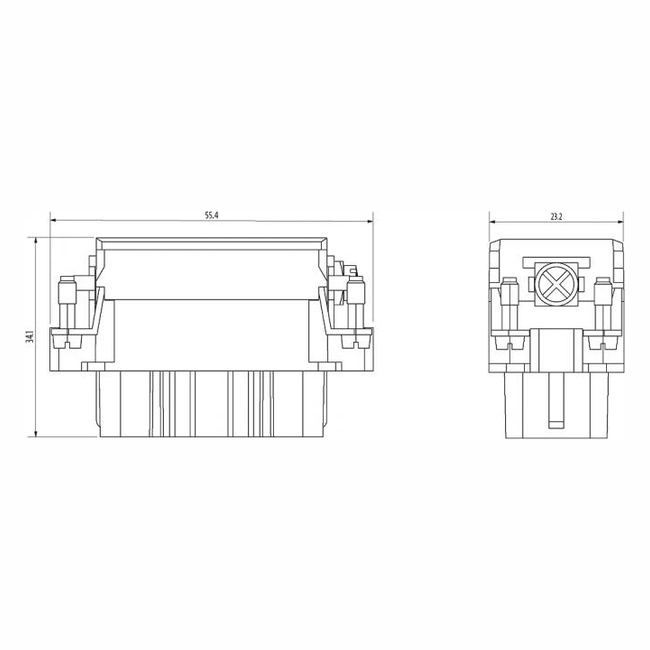

Dimensions

34.1×55.4×23.2 mm

EAN

4048879764551
