3WL1116-3CB34-4AS2-Z C11+C22+C27+K07+S33 SIEMENS ⍾ 3WL11163CB344AS2ZC11C22C27K07S33

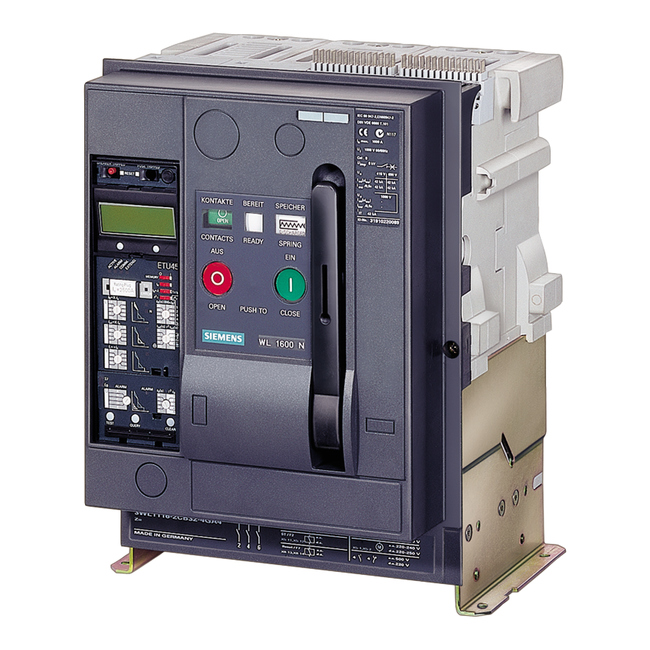

Fixed-mounted circuit breaker 3-pole, size I, IEC In=1600A to 690V, AC50/60Hz Icu=66kA at 500V frnt.conn. top/bot. dual-hole Overcurrent release ETU 25 LSI protection adjustable 0.4-1 in Motorized/manual operating mechanism with spring charging motor AC 50/60 Hz 208-240 V or 220-250 V DC Activation AC 50/60 Hz 230 V, 220 V DC without 1st auxiliary release With 2nd auxiliary release "RC", F4 Undervoltage, Delay 0.2-3.2s 208-240 V AC, 220-250 V DC, 100% ED 2NO+2NC C11= electrical On with sealing cap not possible with option F02 C22= Ready indicator C27= Auxiliary switching function 2nd auxiliary release not possible with option F02 K07= Tripped signaling contact, 1 CO not possible with option F02 S33= Locking device Tension lever

Type

3WL Circuit breakers

Customs tariff number

85362090

Expected origin

CZ

Weight

43.000 kg
