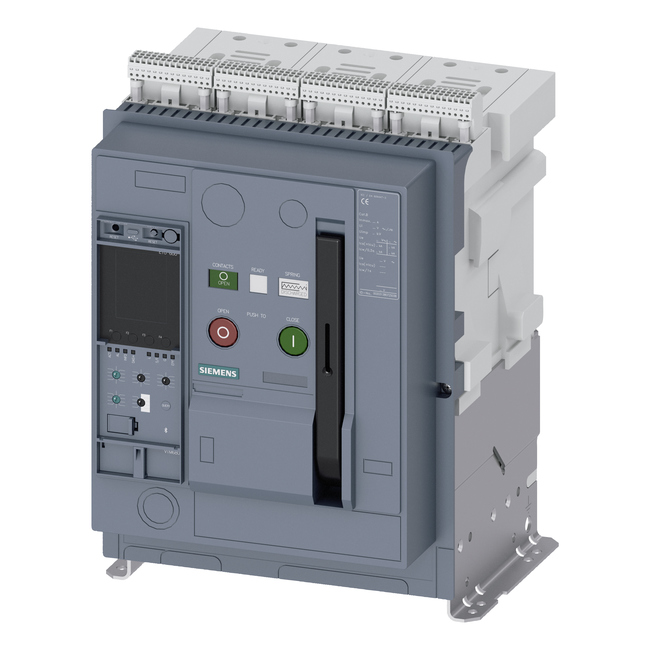

3WA1125-2NF02-0HD3 SIEMENS ⍾ 3WA11252NF020HD3

Fixed-mounted circuit breaker IEC 60947-2, frame size 1, 3-poles, In=2500A up to 690V AC 50/60Hz, breaking capacity N Icu=55/42kA at 500/690V, Trip unit ETU600 LSIG upgrade ready , colordisplay, bluetooth and USB interface, Protection LT, ST, INST, GFx, N-protection required an external N-sensor, incl. trip alarm switch (1xCO), rear connection horizontal, with internal voltage tap on upper stab of circuit breaker, with voltage tap module VTM680 and power supply of ETU600, able to communication, integrated metering type PMF-3 Advanced Power Monitor., Voltage, Energy, Power, Power factor, Frequency, Unbalance, Temperature, Power quality, Manual operating mechanism with mechanical closing, without Spring charging motor, Ready-to-close signal. switch, Auxiliary switches 2NO+2NC, Closing coil (CC) 100% OP 110-127 V AC / 110-125 V DC, applicable for continuous duty, Remote trip alarm reset (RR) 110-127 V AC / 110-125 V DC for momentary duty, Shunt trip (ST2) 100% OP 110-127 V AC / 110-125 V DC, suitable for continuous duty, Shunt trip (ST) 100% OP 110-127 V AC / 110-125 V DC, suitable for continuous duty,

Type

3WA Circuit breakers

Customs tariff number

85362090

Expected origin

CZ

Weight

33.092
