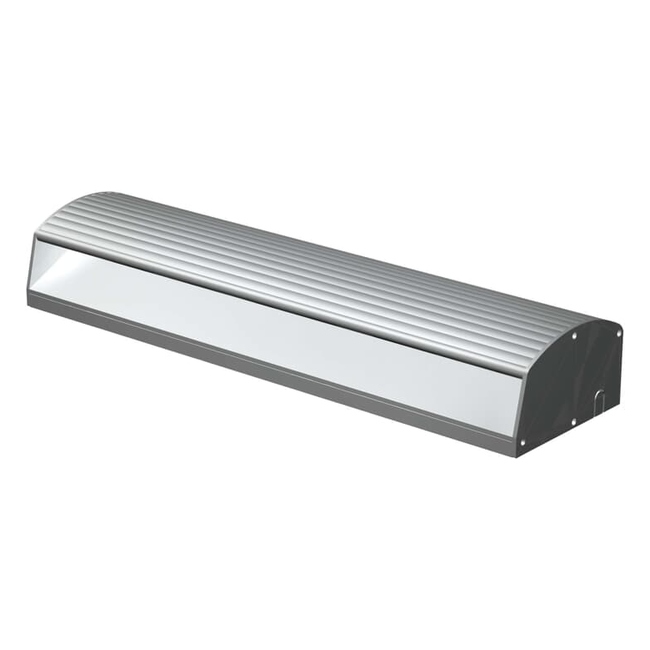

2TLA042023R0100 ABB ⍾ JSM D28

Aluminum profile used as door handle and mounting kit for a complete Magne on hinged doors with a minimum opening radius of 200 mm. Magne is mounted directed on the door post, while anchor plate and Eva, if applicable, are mounted on the JSM D28. JSMD28 covers the Magne unit completely when the door is closed. To be used with Magne Anchor plate 32A, 32B, 32D or 32E.

Type

Safety Sensors, Switches and Locks

Catalog description

JSM D28 Handle profile for Magne

Customs tariff number

76109090

Weight

0.89 kg

Dimensions

(WxHxD/L) 97 mm x 350 mm x 58 mm

EAN

7350024458152
